Pixhawk PX4 2.4.6(2.4.5) 32 bit ARM Flight Controller with 8G TF Card & PX4FLOW v1.3.1 Luminous Flux Smart Camera

Availability: In stock, usually dispatched in 1 business day

  • Price:$136.50
  • Price in reward points: 1365 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $133.77 $131.04 $126.95 $121.49 Contact US
Quantity:

Pixhawk PX4 2.4.6 32 bit ARM Flight Controller with 8G TF Card & PX4FLOW v1.3.1 Luminous Flux Smart Camera

Pixhawk 2.4.6 Description:
Compare to the old version 2.4.5, this newest version make several improvements.
- SD card base adopts deadlock function. SD card will not be easily taken out unless press the SIM
- The front jacks all adopts imported the gilded needle, has better contact resistance, more stable and reliable
- NEC original tantalum capacitor is added in back compass and main power supply, making each sensor has stable power supplying and lesser possibility of aircraft crashing
- The same matte black gold plate as the original version, high quality
- PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high





Features:
- with external LED -Dual Size full angle LED
- Advanced 32 bit ARM CortexM4 high performance processer, can operate NuttX RTOX real time operation system
- 14 PWM/ Servo Output
- Bus interface(UART,I2C,SPI,CAN)
- Intergrated back up power and lose efficacy controller, main controller lose efficacy can safely alter to back up control
- Providing automatic and manual mode
- Providing redundant power supply input and failover
- Multicolor LED light
- Providing multi sound buzzer interface
- Micro SD records flying data

Hardware parameters

Processor:
- 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
- Main frequency: 168MHZ,256K RAM
- 32 bit STM32F103 back up processor

Sensor:
- L3GD20H 3 axis digital 16 bit gyroscope
- LSM303D 3 axis 14 acceleration/magnetometer
- MPU6000 6 axis acceleration/magnetometer
- MS5611 high precision barometer

Interface:
- 5 UART, one compatible high voltage, two have hardware flow control
- Two CAN
- Spektrum DSM/ DSM2/ DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI(PWM or voltage) output
- I2C
- SPI
- 3.3 and 6.6VADC input
- External MICRO USB interface

PX4FLOW v1.3.1 Description:
- It is the newest 1.3.1 version, the workmanship surpasses original version, the hardware is the same with original version
- Official website introduction: http://pixhawk.org/modules/px4flow
- PX4FLOW is a smart luminous flux sensor. It has 752x480 pixels definition, adopting 4 times classification and clipping algorithm, caluculating speed reaches 250Hz, has very high sensor degree
- Different from other sensor, can work under the 120Hz speed indoor or outdoor dark light, no need LED to illuminate the enviroment
- You can also reprogramme it and execute other visual tasks

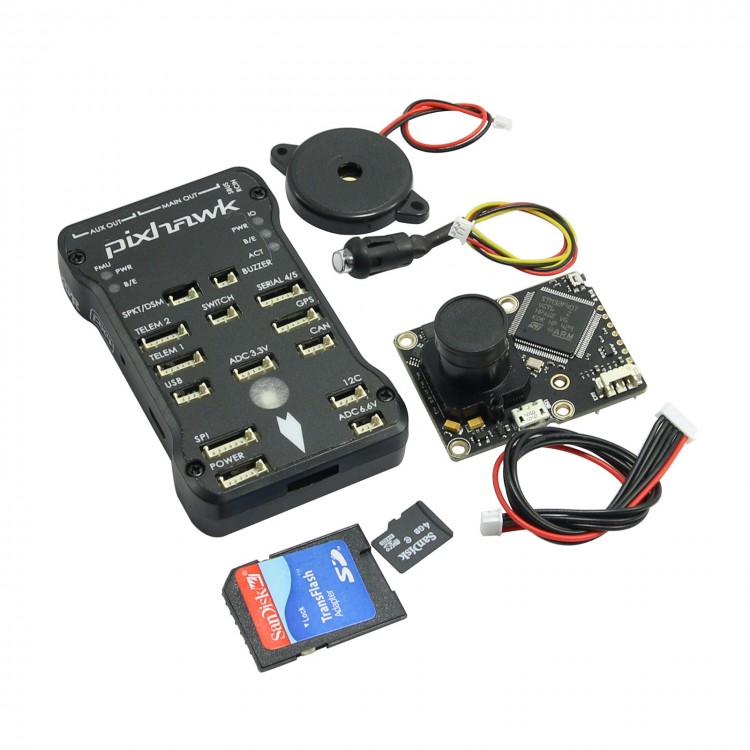

Package List:
- Pixhawk px4 2.4.6 32 bit ARM Flight Controller   X  1pcs
- Original shell  X  1pcs
- Buzzer  X  1pcs
- Safety button  X  1pcs
- 8G TF Card (IO firmware has written)  X  1pcs
- PX4FLOW v1.3.1 Luminous Flux Smart Camera  x 1pcs
