Pixhawk PX4 2.4.8 32 Bit ARM FPV Flight Controller Integrate PX4FMU+PX4IO with Case + Ublox M8N GPS for RC Quadcopter
  • Pixhawk PX4 2.4.8 32 Bit ARM FPV Flight Controller Integrate PX4FMU+PX4IO with Case + Ublox M8N GPS for RC Quadcopter
  • Pixhawk PX4 2.4.8 32 Bit ARM FPV Flight Controller Integrate PX4FMU+PX4IO with Case + Ublox M8N GPS for RC Quadcopter
  • Pixhawk PX4 2.4.8 32 Bit ARM FPV Flight Controller Integrate PX4FMU+PX4IO with Case + Ublox M8N GPS for RC Quadcopter
  • Pixhawk PX4 2.4.8 32 Bit ARM FPV Flight Controller Integrate PX4FMU+PX4IO with Case + Ublox M8N GPS for RC Quadcopter

  • SKU:51137
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 7
  • Price:$71.14
  • Price in reward points: 711
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $69.72 $68.29 $66.16 $63.31 Contact US

Pixhawk PX4 2.4.8 32 Bit ARM FPV Flight Controller Integrate PX4FMU+PX4IO with Case + Ublox M8N GPS for RC Quadcopter

Description:

- The Flight Controller board integrates with PX4FMU+PX4IO
- Pixhawk Flight Controller is with new 32 bit chip and sensor technology

Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide automatic and manual mode;
- Provide redundant power input and fault transfer function;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;

Processor:
- 32 bit 2M flash memory STM32F427  Cortex M4, with hardware floating point processing unit
- Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co processor

Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis  14 bit accelerometer /magnetometer
- MPU6000 6 axis accelerometer / magnetometer
- MS5611 high precision barometer

Interface:
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2*CAN
- Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External USB MICRO interface

Ublox M8N GPS Module Description:
- A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.3-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.
- A new better GPS optional for APM and Pixhawk. NEO-M8N will be the best choice for the Open Source Controller with it's Super High Precision and Fast Searching Star Efficiency.
- Built-in Compass, the refresh rate increased to 10GHZ
- NEO-M8N with Low-power, High Precision, the Ultimate precision 0.6 meter. The actual test Precision mostly at about 0.9 meter.
- The Pixhawk test the return precision most at 20-30cm. Improved a lot compare to the previous NEO-7N's Precision 1.3-1.6 meter.
- The Star searching Speed and quantity improived, support the Europe's Galileo, Russian GLONASS, Japanese Small Sun, Chinese BDS. The module support GPS + BDS + SBAS or GPS + GLONASS + SBAS

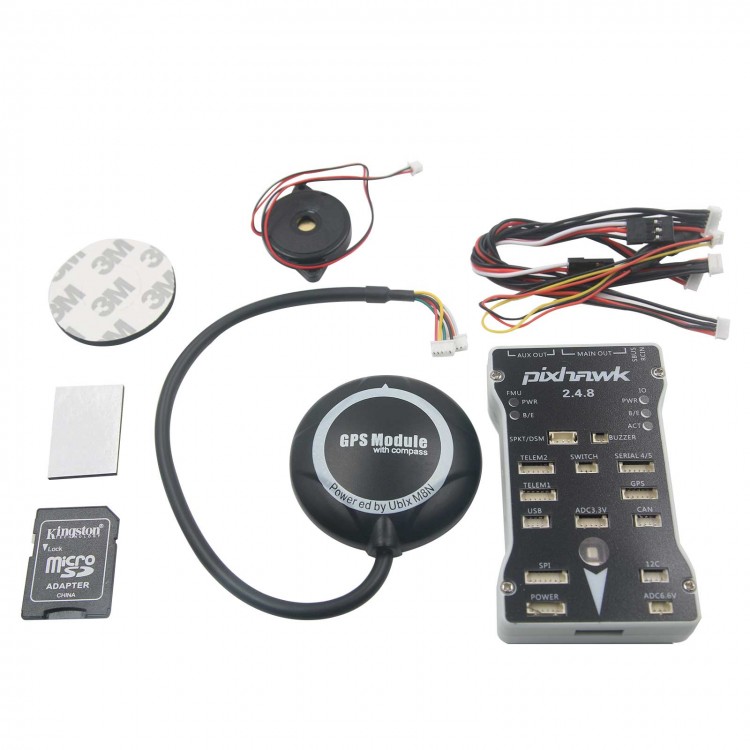

Package included:
- 1 x 2.4.8 Pixhawk flight control
- 1 x Flight control shell
- 1 x Safety switch
- 1 x Buzzer
- 1 x 6pin to 6pin line
- 1 x 4Pin to  4Pin line
- 1 x 3pin DuPont line
- 1 x NEO-M8N GPS Module
