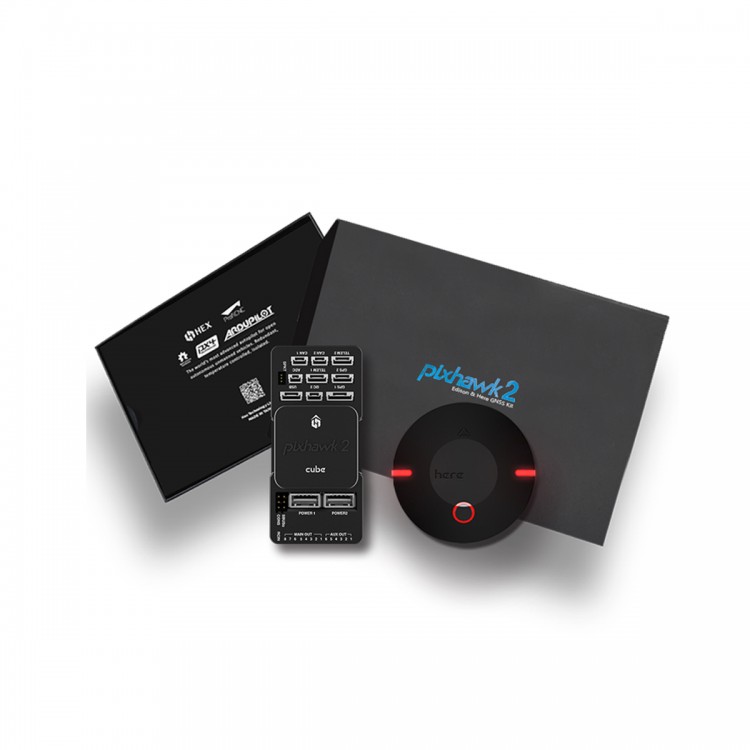

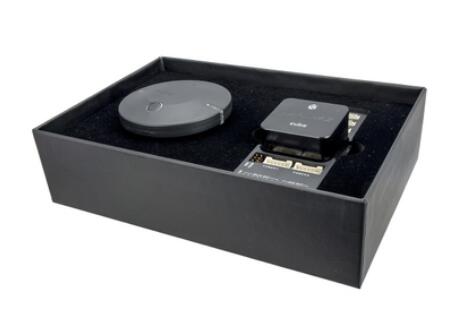

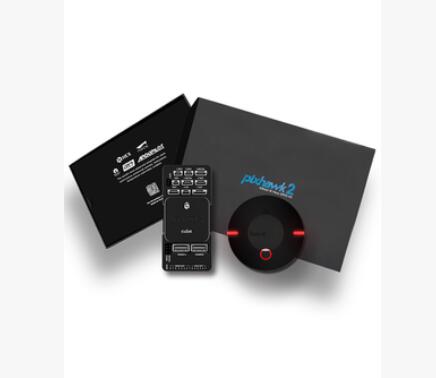

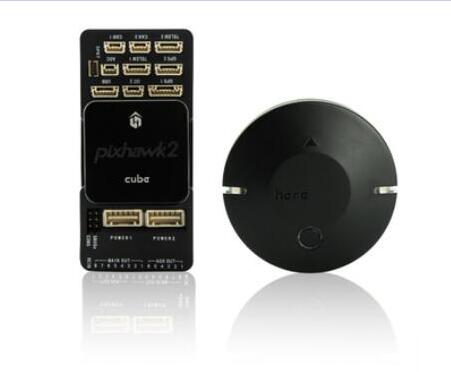

Pixhawk2sp Open Source Auto Pilot PIX2 Flight Controller GPS Module Kit
  • Pixhawk2sp Open Source Auto Pilot PIX2 Flight Controller GPS Module Kit
  • Pixhawk2sp Open Source Auto Pilot PIX2 Flight Controller GPS Module Kit
  • Pixhawk2sp Open Source Auto Pilot PIX2 Flight Controller GPS Module Kit
  • Pixhawk2sp Open Source Auto Pilot PIX2 Flight Controller GPS Module Kit
  • Pixhawk2sp Open Source Auto Pilot PIX2 Flight Controller GPS Module Kit

  • SKU:54184
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 52
  • Price:$519.35
  • Price in reward points: 5194
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $508.96 $498.58 $483.00 $462.22 Contact US

Pixhawk2sp Open Source Auto Pilot PIX2 Flight Controller GPS Module Kit


Hardware Parameter & Flight Function:
- Main processor:STM32F427 V3-------Support spot hover,high altitude flight,waypoint autonomous flight,following mode...,ect.Over 10 kinds flight mode.
- Coprocessor:STM32F1------Ground station support Qgroundcontrola and Mission Planner.
- Support remote control signal:PPM/SBUS/DSM----- Built-in flight date recording.
- Power supply redundancy support:Support 3-channel redundancy------Flight date real-time tranmission
- Sensor number:3 pairs IMU------Support 360 degree obstacle avoidance (need to use with ranging sensor)
- Sensor Details:
L3GD20 (triplex barometer)
LS303D (barometer+magnetometer)
MPU9250x2 (barometer+gyroscope+magnetometer)
MS5611x2 (barometer)
- Software support:PX4 and Ardupilot open flight control software-------Cooperative computer,support TX1,Raspberry Pi,Intel Edison...,ect. cooperate working.
- Model support:Fixed wing;Multiple rotor 3 axis~8 axis;helicopter;Vertical lifting fixed wing;car/boat/submarine-------Support OSD image transmission display.

Main parameter:
- Weight:73g

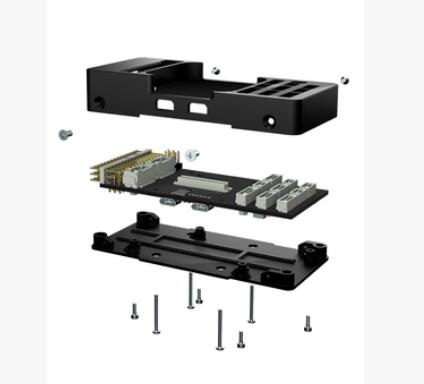

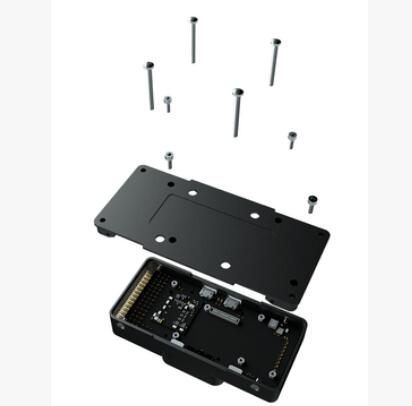

- Shell material:CNC aluminum alloy forming (cube)+Injection ABS (carrier)
- Dimension:cube 38.2X38.2X22mm;Carrier:94.5X44.3X17.3mm
- Working temperature:-10℃~55℃ IMU thermostatical control
- PWM output IO:13
- Mavlink serial port:2
- GPS support number:2
- Debug debugging interface:1
- 12C interface:2
- CAN interface:1

Protection function:

- Intelligent return
- Battery low voltage protection
- Flight barrier
- Remote control Out of contact protection

Package List:
- 1 x Pixhawk2sp Open Source Auto Pilot PIX2 Flight Controller GPS Module Kit
- 1 x User manual
