Port107V STM32F107VC MCU ARM Cortex-M3 32-bit RISC STM32 Developmen​t Board Kit
  • Port107V STM32F107VC MCU ARM Cortex-M3 32-bit RISC STM32 Developmen​t Board Kit

  • SKU:21241
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$26.39
  • Price in reward points: 264
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.86 $25.33 $24.54 $23.49 Contact US

Port107V STM32F107VC MCU ARM Cortex-M3 32-bit RISC STM32 Developmen​t Board Kit
Descriptions:

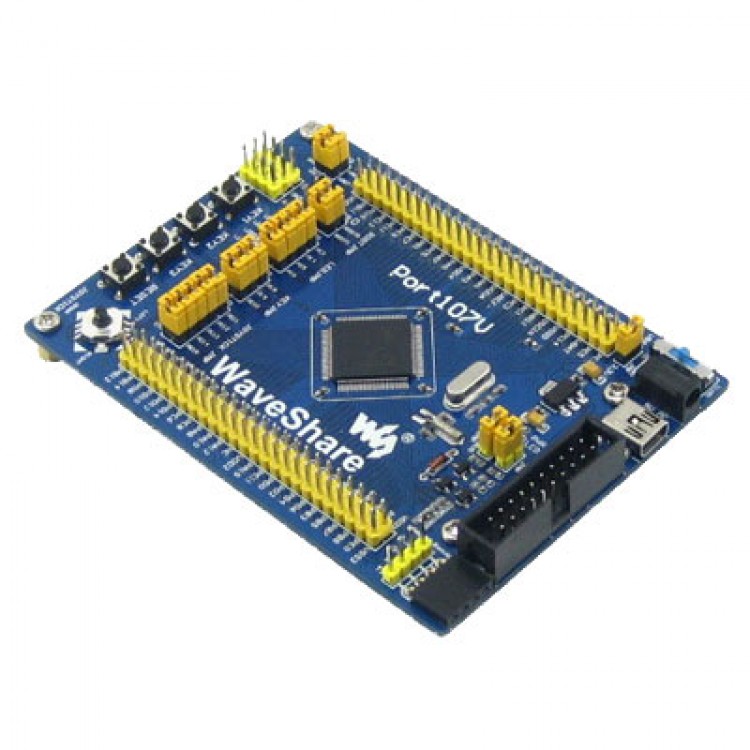

- Port107V is a STM32 development board that features a STM32F107VCT6 device as the microcontroller, supports further expansion with various optional accessory boards for your specific application. It is ideal for starting application development with STM32F family.

Note: Optional accessory boards are NOT included in the price.

1.STM32F107VCT6: the high performance STM32 MCU which features:
   Core: ARM Cortex-M3 32-bit RISC
   Operating Frequency: 72MHz, 1.25 DMIPS/MHz
   Operating Voltage: 2-3.6V
   Package: LQFP100
   I/Os: 80
   Memories: 256K Flash, 64K RAM
   Communication Interfaces: 3 x SPI, 3 x USART, 2 x UART, 2 x I2S, 2 x I2C, 1 x Ethernet MAC, 1 x USB OTG, 2 x CAN
   AD & DA converters: 2 x AD (12-bit, 1μs, shares 16 channels); 2 x DA (12-bit)
    Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP
2.AMS1117-3.3V: 3.3V voltage regulator
3.Power indicator
4.LEDs: Convenient for indicating I/O status or program debugging running state
5.Reset button
6.User keys
7.3Joystick: five positions
8.25M crystal oscillator
9.32.768K crystal, used for internal RTC, also supports clock calibration
10.JTAG/SWD interface: for debugging/programming
11.USB connector, used for establishing USB communication between PC and the STM32 development board
12.USART2 connector, supports ISP (In-System Programming) through USART2, as well as system signal output
13.IO expander, all the MCU pins are accessible on expansion connectors for further expansion
14.Power input/output header, 5V/3.3V, usually used for power output, or common ground with other user board
15.5V DC power jack
16.Boot mode selection: for configuring the BOOT0 and BOOT1 pins
17.Power supply switch, powered from 5V DC jack or USB connection
18.OTG PWR OUT enable jumper
     Short the jumper to enable OTG PWR OUT
     Open the jumper to disable, as well as taking up no I/O port
19.OTG VBUS enable jumper
     Short the jumper to enable OTG VBUS
    Open the jumper to disable, as well as taking up no I/O port
20.VBAT selection jumper
     Short the jumper to use system power supply
     Open the jumper to connect the VBAT to external power, such as battery
21.VREF jumper
     Short the jumper to connect VREF+/VREF- respectively to VCC/GND
     Open the jumper to connect VREF+/VREF- to other custom pins via jumper wires
22.User LEDs jumper
    Short the jumper to connect to I/Os that used in example code
    Open the jumper to connect to other custom pins via jumper wires
23.User keys jumper
    Short the jumper to connect to I/Os that used in example code
    Open the jumper to connect to other custom pins via jumper wires
24.Joystick jumper
    Short the jumper to connect to I/Os that used in example code
    Open the jumper to connect to other custom pins via jumper wires

Note:
- Accessory board and programmer/debugger in the photos are NOT included in the price.
- Port107V supports programming through USART port without programmer.
- Port107V provides JTAG/SWD debugging interface, yet does NOT integrate any debugging function, a debugger is required

Package Contains
- Port107V Development Board x 1
- USB type A to Mini-B cable x 1
- USB Power Cable x 1
- 4-pin wire x 2
- 2-pin wire x 2
- User Guide CD x 1
