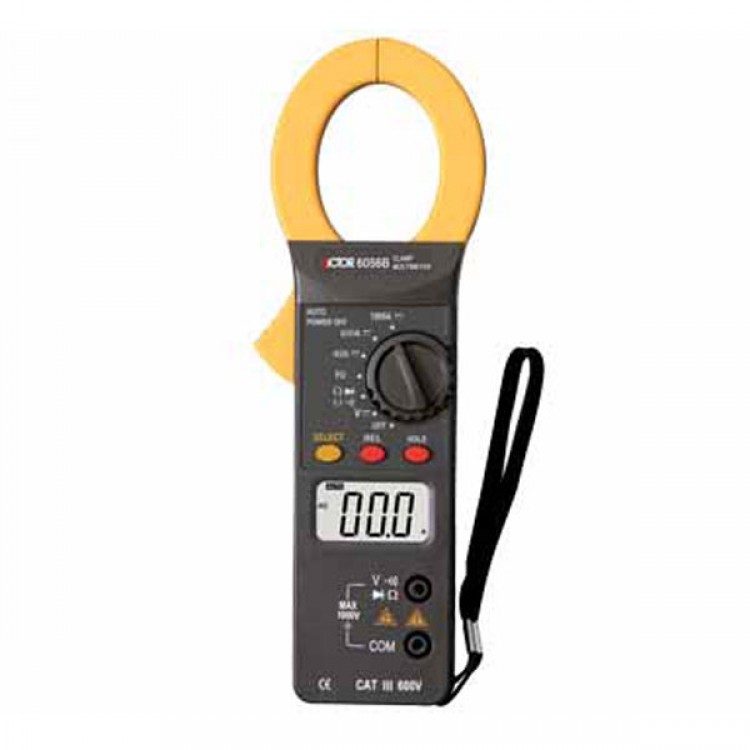

Portable LCD Display Digital Multimeter VICTOR 6056B AC Digital Clamp Meter
Features:
VICTOR6056B
- Portable design, can be one-handed operation, easy to use;
- Clamping head with the double protection of insulation, enhanced anti-jamming;
- Non-contact measurement, to improve the measurement safety;
- Structural design stringent and reasonable.

Basic functions  Range Basic accuracy
DC voltage  400mV/4V/40V/400V/1000V  ±(0.5%+4)
AC voltage  4V/40V/400V/750V    ±(0.8%+10)
AC Current  40A/400A/1000A      ±(2.5%+8)
DC Current  40A/400A/1000A ±(2.5%+8)
Resistance  400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ    ±(0.8%+4)
Capacitor  40nF/400nF/4uF/40uF/100uF ±(3.0%+10)
Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz ±(0.5%+4)







Special features VICTOR 6056B
Diode test
On-Off Alarm
Low Voltage Display
Unit Symbol Display
Keep  Data / Peak Hold
Automatic shutdown
Overload
Impedance  10MΩ
Sampling frequency  3 time/s
AC Current Frequency  (50-60)Hz
Mode of operation  Auto Range
Maximum display  3999
Jaw open  38mm
Power 9V







General Characteristics
Colors Case:dark gray;Holseter color:yellow
Weight About 270g(With 9V battery)
Standard Table pens, batteries, manuals, certification, Paper Box
Standard BOX
