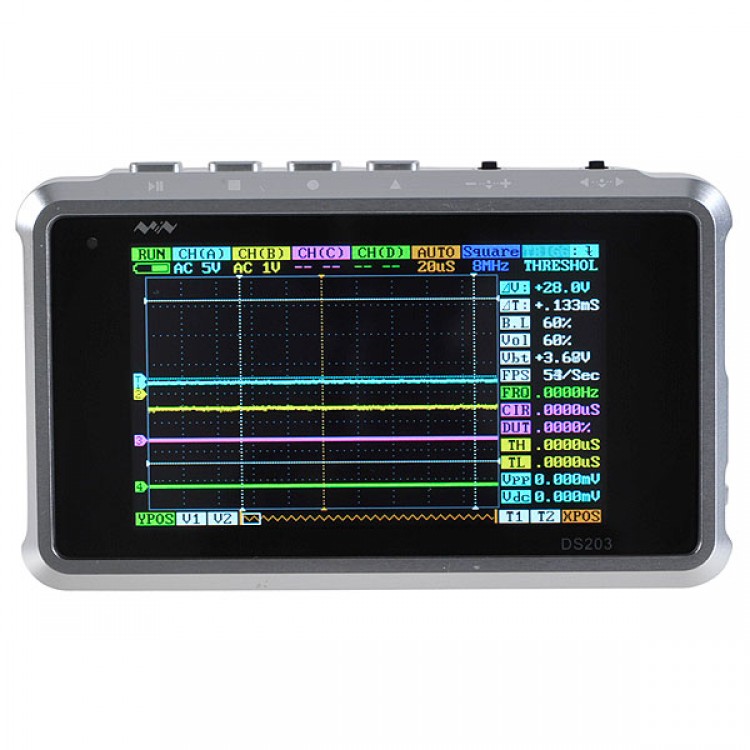

Portable Mini ARM Cortex M3 DSO203 Digital Storage Oscilloscope White

Availability: Out Of Stock

  • Price:$178.63
  • Price in reward points: 1786 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $175.06 $171.48 $166.13 $158.98 Contact US
Quantity:

Portable Mini ARM Cortex M3 DSO203 Digital Storage Oscilloscope


DS203 is a 5-track 4-wire electrical engineering tasks common digital oscilloscope. It's based on ARM Cortex M3 core CPU, FPGA realization of the management of the external ADC control and data cache, built-in 2MB U-disk that user can store the waveform and upgrade system firmware. Provides four application partitions, convenient user to load and upgrade max.4 different applications firmware.

Features:
- 2 probe connectors
- 4 inputs & 4 tracks (2 analog 2 digital)
- A custom waveform output (including the built-in sine, square, triangle)
- Built-in 2M USB disk
- Very low power consumption

Specifications:

CPU ARM Cortex M3
FIFO & Control FPGA
Analog Channel * 2 [CH_A] [CH_B]
Digital Channel * 2 [CH_C] [CH_D]
Vertical Scale 20mV-10V/div (1-2-5 step) x1 probe;200mV-100V/div (1-2-5 step) x10 probe
Vertical Resolution 8 bit
Storage 8K per single channel / 4X4K on 4 channels
Input Coupling AC/DC
Max input voltage 80Vpp (x1 probe) / 400Vpp (x10 probe)
Software trigger type edge, pulse, level (to be added)
Hardware trigger type edge
Trigger Modes Auto, normal, single, slow scan, instant scan
Trigger Source [CH_A] [CH_B] [CH_C] [CH_D]
Test Signal generator 10Hz to 8Mhz 2.8Vpp Square Wave, duty circle 10~90% adjustable / 10Hz to 20Khz 2.8Vpp Sin, Square, Saw,Triangle wave
Storage Built-in 2MB USB disk
Support File Format BMP, DAT
Auto Measurement Vmax, Vmin, Vpp, Vavg, Virtual Value, Frequency, Period, Pulse, Duty
Cursor Measurement Time value, amplitude value
Display Mode 1-wire: [CH_A], HIDE 2-wire: [CH_B], HIDE 3-wire: [CH_C], HIDE 4-wire: [CH_D], HIDE, [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C] &[CH_D], FILE_1, FILE_2, FILE_3, FILE_4
Sampling Mode Real Time
Sampling Rate 30S/s - 72MS/s
Power Built-in Battery
Dimension 98 * 60 * 14.5 (mm)
Weight 105g



Package included:
- 1 x Portable DS203 Oscilloscope
- 1 x Probe
- 1 x USB Cable
