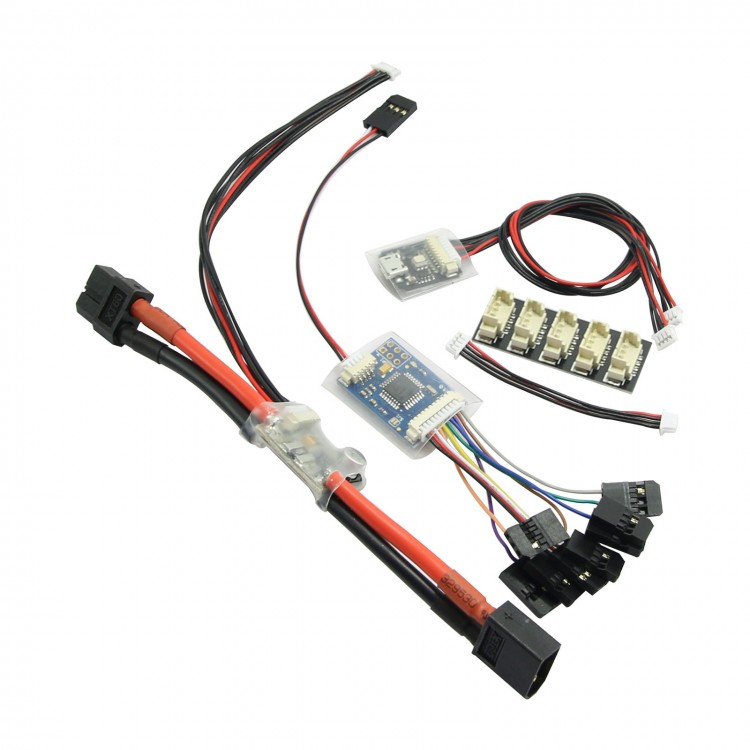

Power Supply Module & PPM Encoder & LED Indicator & I2C Splitter Expand for Pixhawk Flight Controller
Power Supply Module Specifications:
- Max input voltage: 28V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
PPM Encoder Specification:
- Support input channel:8
- Output:PPM SUM ×1 / MUX ×1
- Size:28mm x 19mm x 5mm
- Weight: 9g
- with ArduPPM_v2.3.16 firmware
LED Indicator Specification:
- RGB indicator extend to copter outside displaying
- Extension USB interface for external USB connection
- The same Toshiba LED controller and Osram RGB LED with Pixhawk
- Molex origianl 1.25 connector and HRS original USB plug
- Size: 18*18*5mm
- Weight: 4g
- Includes 200mm connection cable 1pc
I2C Splitter Expand Specification:
- The I2C splitter expands the I2C port to allow up to four additional peripherals to connect to Pixhawk. Use the 4-wire cable to connect the I2C splitter and add a compass module, external LED, digital airspeed sensor, or other peripherals to your vehicle.
Package List:
- 1 x Power Supply Module
- 1 x PPM Encoder Module
- 1 x LED Indicator Module
- 1 x I2C Splitter Expand Module
