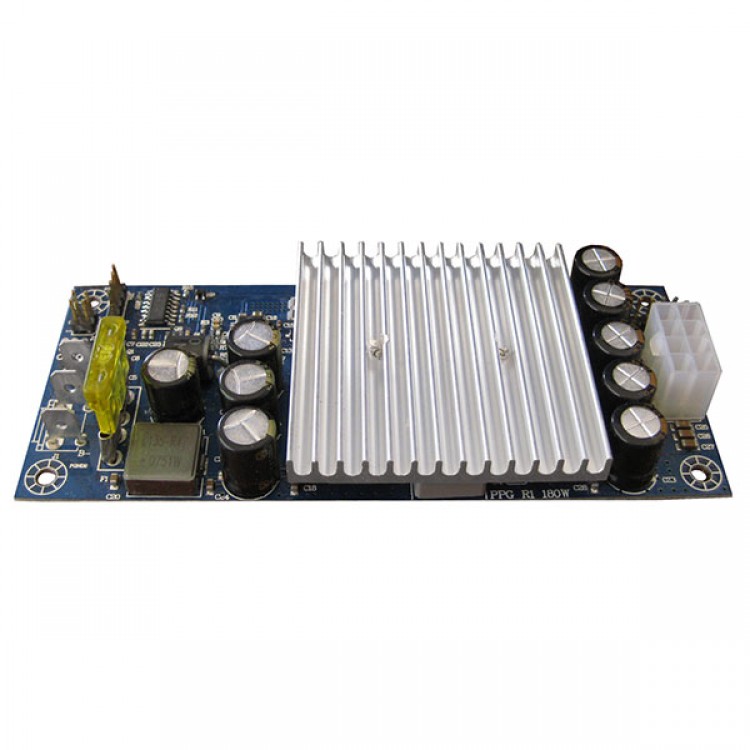

PPG-1-150W 8-28V DC 150W DC-ATX DC Voltage Regulation Board Power Supply Board Regulator
  • PPG-1-150W 8-28V DC 150W DC-ATX DC Voltage Regulation Board Power Supply Board Regulator
  • PPG-1-150W 8-28V DC 150W DC-ATX DC Voltage Regulation Board Power Supply Board Regulator

  • SKU:28188
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 4
  • Price:$38.98
  • Price in reward points: 390
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.20 $37.42 $36.25 $34.69 Contact US

PPG-1-150W 8-28V DC 150W DC-ATX DC Voltage Regulation Board Power Supply Board Regulator



Features:
- Thin size, high efficiency
- With OVP, OCP, short circuit function
- With intelligent control ITPS ignite function
- For 12V/3.5V main board
- 8-28V input voltage

Input Parameter:
- Input voltage: 8-28V DC+/-5%
- Input current: 20A 8-28V DC
- Impact current: 50A 8-28V DC
- With input fuse
- Non-isolation design
- With over voltage, less voltage, reverse polarity protection

Normal Parameter:
- Transfer efficiency: 90%
- Continous time: 2ms
- Switch frequency: 200K
- Average Non-fault time: >120.000hour

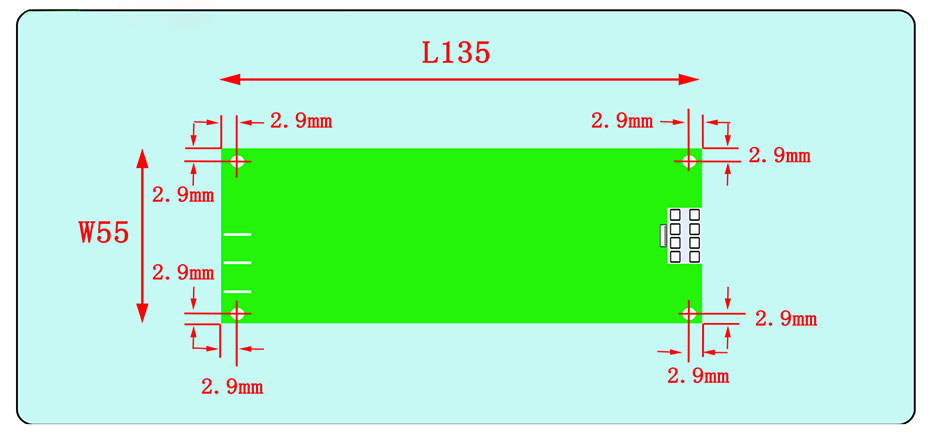

- Size: 135*55*20mm

Output Parameter:
- Output voltage: 3.3V, +5V, +12V, +5VSB, -12V
- Output current: 12.5A
- Voltage modulation: 5%
- Output wave: 120mv
- Rise time: 10ms
- Output overshot: 10%

Environment Parameter:
- Work temperature: -20 to + 50degree
- Storage temperature: -40~+85degree
- Cooling: Nature cooling
- Humidity: 5~95%RH
