PPM Encoder Module & LED Indicator Module & I2C Splitter Expand Module for Pixhawk Flight Controller
PPM Encoder Specification:
- Support input channel:8
- Output:PPM SUM ×1 / MUX ×1
- Size:28mm x 19mm x 5mm
- Weight: 9g
- with ArduPPM_v2.3.16 firmware
LED Indicator Specification:
- RGB indicator extend to copter outside displaying
- Extension USB interface for external USB connection
- The same Toshiba LED controller and Osram RGB LED with Pixhawk
- Molex origianl 1.25 connector and HRS original USB plug
- Size: 18*18*5mm
- Weight: 4g
- Includes 200mm connection cable 1pc
I2C Splitter Expand Specification:
- The I2C splitter expands the I2C port to allow up to four additional peripherals to connect to Pixhawk. Use the 4-wire cable to connect the I2C splitter and add a compass module, external LED, digital airspeed sensor, or other peripherals to your vehicle.

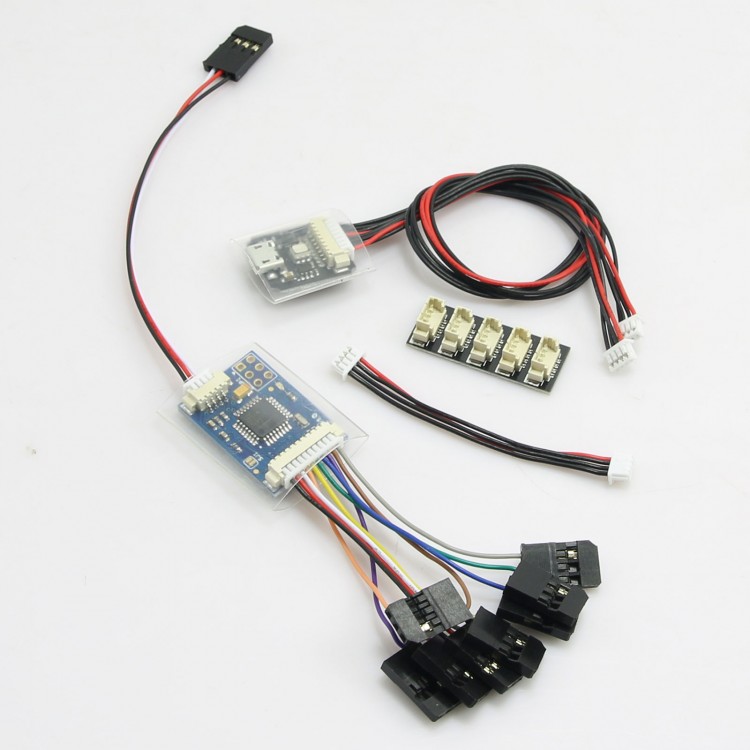

Package List:
- 1 x PPM Encoder Module
- 1 x LED Indicator Module
- 1 x I2C Splitter Expand Module
