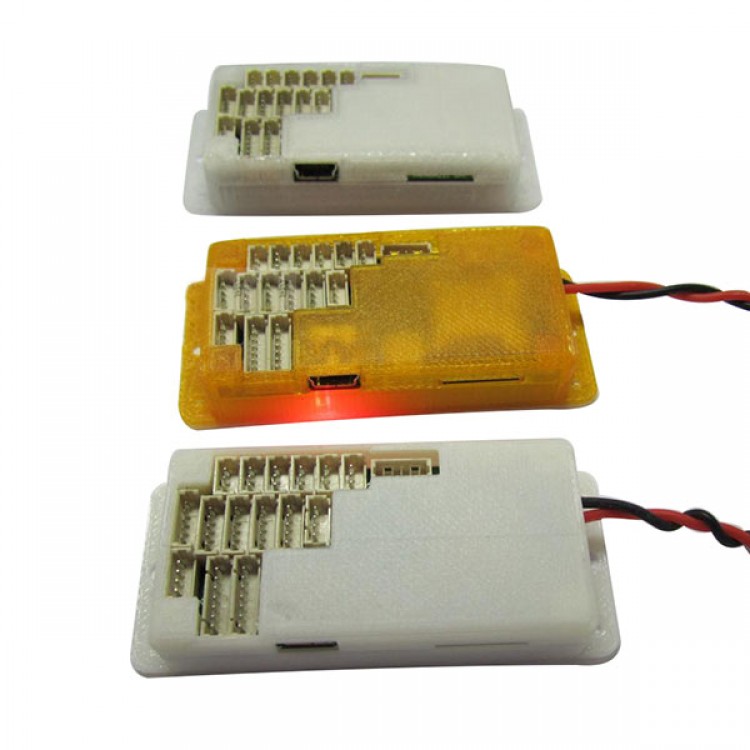

PPZ Flight Control Apogee Paparazzi UAV Finished Version for Fixed Wing Multirotor Aircraft
Spes:
- Based on STM32F405 micro controller
- 9 DOF intergrated MU MPU-9150
- One barometer/ altimeter MPL3115A2
- One MicroSD card slot, four bits of SDIO interfac
- One USB jack: DPU mode or USB storage device
- Six servo PWM output
- 1×R / C receiver PPM frame output
- 1×R / C receiver serial inverter
- Three UART
- 2 x I2C highway
- One SPI highway
- RIC and back up capacitor
- SWD(ARM download/ debug interface)
- Four assis I/O (univeral and / or ADC and / or servo PWM)
- 5V / 1.5A switch power input voltage range (5.5V-Max 17V)
- 3.3v/ 1A linear stabilizer
- One 5V/ 500mA power switch
- Four state LED indicator light
- 10.4g
- 53*25mm
- Four layers of PCB design
