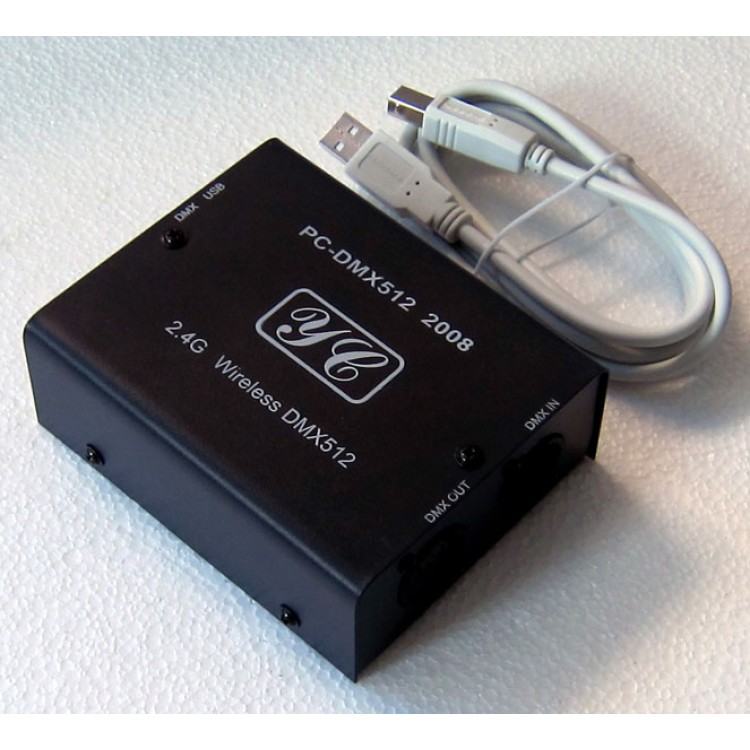

Pro USB to DMX512 1024 Channels DMX Interface Converter HIGH SPEED Controller for Martin Light
1. DMX-512 compatible output (1024channels)
2. DMX-512 compatible input (1024channels)
3. Buffer the DMX data in the interface
4. Isolated DMX Tranceiver (up to 1000V)
5. Connected to the computer using USB port, PC USB port directly powered..
6. Compatible with WinXP, and Windows
7 (32 and 64 bit) with both USB 1.1 and USB 2.0 ports
Can Support Software:
1. Martin Lightjockey (windows XP)
2. Daslight Virtual Controller2 (windows XP)
It can through PC add M512 box to control any lights which have DMX512 interface.
for example: moving heads,scanners,lasers,led lights,fog machine and so on.
M512 have input function at the same time ,it can catch DMX512 signal in the computer,
for example ;it can connect your real pearl 2008 or other simple controller to M512,let you controller support 3D simulate or VJ software,in other words,it can show programming result and lights effect of you real controller in 3D software in you computer.
You need not go to spot to program lights procedure,you can see the effect in 3D software in your computer.Certainly,in the project
you can connect another graphoscope or projector,for compare the effect of the spot and in graphoscope.
Under Windows XP/Win7 system M512 can 100% compatible Martin Light jockey, you can use Martin Light jockey
software+M512 hardware box directly ,so that you need not buy expensive USB hardware box from Martin company ,that is the most important ,that is the main reason we created our M512.
1.Under XPsystem 100% compatible Martin Lightjockey.At the same time,under XP system,M512 can compatible with Das light
2.Support windows XP /2000 /VISAT/Windows 7(included 64 system), it support second development ,we provide input and output SDK,VB,VC,C++ builder and Delphi sound code.can make its own DMX512 control program in minutes,or can used for sand table display,lighting automatic control on exhibition,or 3D control program.
3.It support ARTNET Lights wired and wireless network protocols , can be used as ArtNet Node, remote control,and provide ArtNet development kit for users to develop their own network control products, as far as I know,at the moment ,there is no product which can to do this,all the Artnet procedures were programmed with Windows API according to the protocol by ourselves,no use any 3rd party libraries or Art Net official library.
4.The most important is in our M512 hardware we add DCDC insulate and photoelectricity insulate ,at the same time ,we add TVS and other protective action .
5.Built-in memory buffer, data transfer smoothly.
6.we add the input funciton to the hardware ,it can support all the famous 3D software .
7.support all the software of the GP512 (the software please reference to the above software picture ).
8.In the PC control software side, it's a key point as well ,we adopt the newest Martin Light jockey version,or newest Das light version you can download it to the official web site and upgrade.
- 1 x MartinDMX USB-DMX512 Controller light Console （1024 channel)
- 1 x usb cable
