Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $55.08 | $53.95 | $52.27 | $50.02 | Contact US |

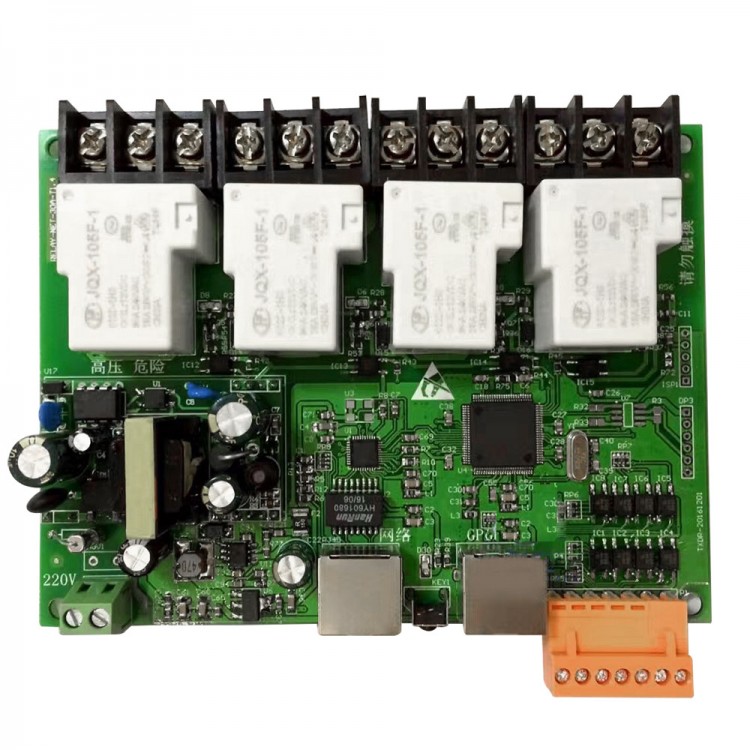

4 Channel Network Relay Panel Support Centralized Control Remote Control APP Light Controller
Features:
- Every channel 30A relay and it supports 30A terminals.
- Support AC power supply with fuse,no needing adapter.
- Support MQTT communication protocol
- Support custom,support APP and centralized control software
Function:
- Ethernet RJ45 interface;
- Onboard WEB server,It can be accessed and controlled through Web mode
- Four channel 250V/AC 30A relay separate output,relay output tin thickening wire
- Eight channel Isolated dry joint (Passive/active) input,it can directly control relay output.
- 220V power supply,no need to et external switch power upply and adapter,with fuse protection.
- It can link router and control access through Android tablets,windows system and custom protocol to make it convenient for users to integrate into their own device systems.
- Support status return and it can real-time display the present relay status.
- One key parameter reduction.You cannot connect to the network because of an incorrect parameter setting or a forgotten password.You can use one key parameter reduction.
- Support profiles mode,you can edit via web page and support input hardware trigger.
- Support Chinese and English interface,you do not need to re-brush firmware.
- Support point touch input is user-configurable.
Package List:
- 1 x 4 Channel Network Relay Panel
