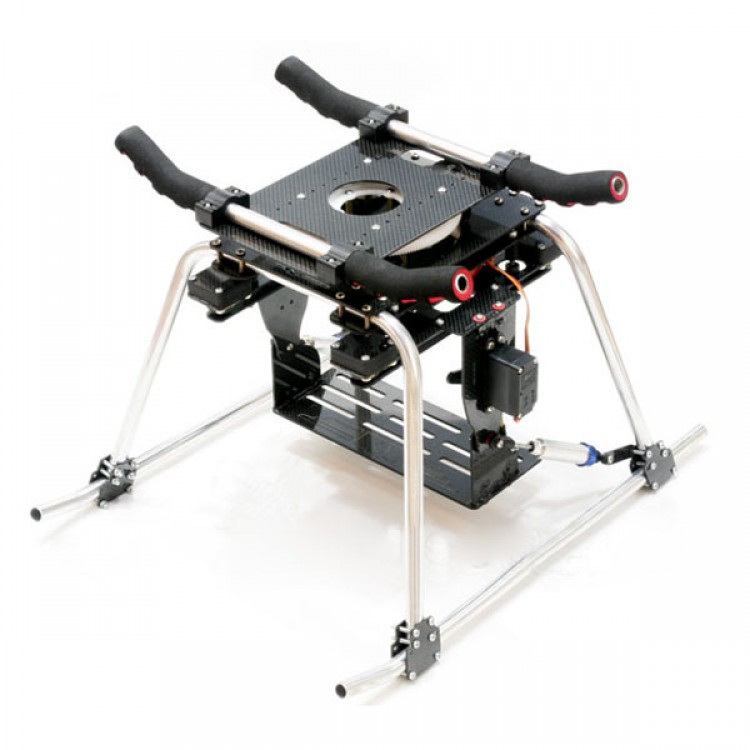

Professional Aerial Photography FPV 2-axis Hydraulic Pressure 360 deg Camera Mount PTZ for Align TREX T-rex 550 600 700 RC helicopter
- Professional Aerial Photography FPV 2-axis Hydraulic Pressure 360 deg Camera Mount XM-FC2X for Align TREX T-rex 550 600 700 RC helicopterXM-FC2X-360 two-axis horizontal 360 degree camera mount is designed for helicopter aerial photography enthusiasts, it can rotate horizontal level unlimited turn, rotation speed and direction of rotation can controlled by remote control, providing a broad range of shooting, no shooting Blind spot. with a high-performance standard digital servo control the pitch angle, XM-FC2X-360 had three special anti-shocking way. first way is flexible rubber screw connection; second way is professional shock absorber; third way is the hydraulic shock absorber damping . camera mount eliminated most helicopter high-frequency vibration by our first and second anti shocking way; 2 pc hydraulic shock absorbers further filtered vibration damping effection. the same time avoided hanger shaking. these 3 ways anti-shocking structural very reliablity, and easy for maintenance.XM-FC2X-360 full weight 1.32kg (including the two servos), the structure simple and reliable, suitable for T-REX 550/600/700 or similar size other brand name whole series Nitro or electric helicopters. XM-FC2X-360 main camera mount has installation and debugging, customer only need to simply assemble anti-shock absorbers and landign gear part.
- Two-axis control (Pan , Tilt )
- 360 degree rotation unlimited turns
- Rotation do not have shooting blind spot area.
- Clockwise or counterclockwise rotation
- Rotation speed can be controlled, variable speed
- Rotation ok to be controlled by regular radio control system.
- Main material: carbon fiber, aluminum
- More lower center gravity than our XM-FC3X
- When we ship to customer, which installed two high-performance digital servo without debugging
- Two hydraulic shock absorbers, anti-shock better, easy to assemble, easy to useProduct Specifications:
- Weight: 1.32kg
- Rack size: 310mm (length) x 400mm (depth) x 255mm (H)
- camera mount inner size space: 165mm (W) x 80mm (depth) x 148mm (H)
- Maximum load: 2kg
