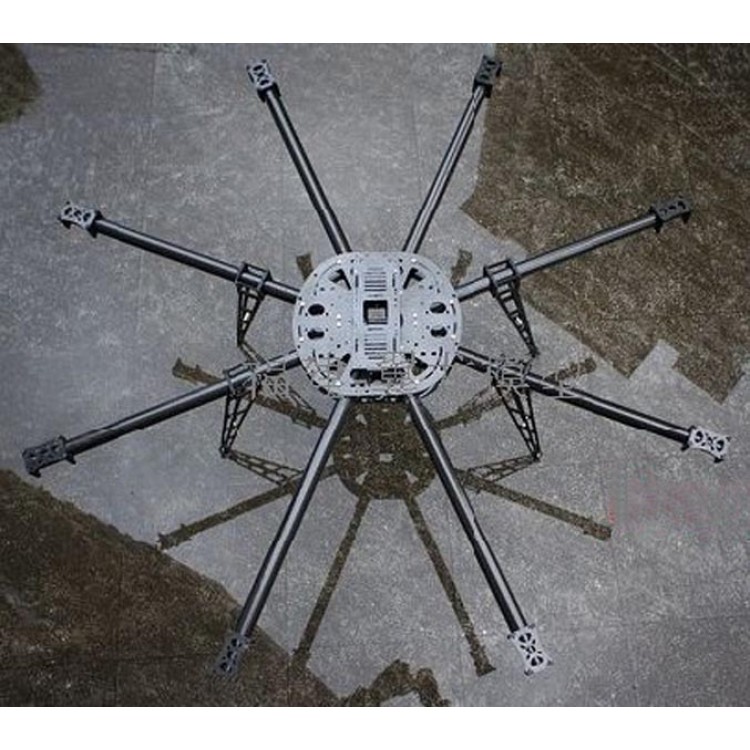

Professional FPV Folding Octacopter 22mm 3K Pure Carbon Fiber Multicopter Frame Kit 850-1000mm
- Star shape Octacopter,fully compatible with Zenmuse Z15 Camera Gimble
- This super aircraft can be installed as quadcopter or hexcopter/Octacopter depends on you.
- All the parts adopts 2mm thickness 3K twill carbon fiber as material,higher anti-impact resistance
- Composite by high quality aluminum tube fixture and 3K twill 100% 22mm dia carbon fiber tube.
- Folding design,Easy for carrying
- High strength with light weight
- Designed for high grade FPV!
- The Diameter of the base board for this quadcopter is about 240mm,with carbon fiber landing gear( default 300mm height),compatible with Xaircraft landing gear,it is similar as the installation method of XAircraft.
- The default set we send you is a Octaxcopter set kit,you can install it as a Hexacopter/quadcopter if you like,Moreover, Magical design enable you enjoy the fliying of both multicopter!
- This multicopter is designed for FPV,shaft distance is between 850mm to 1000mm(Shaft can be retractable ).It can installed light weight Single Lens Reflex camera or common digital camera(such as EOS 60D,GH2 and so on)
This multicopter set kit includes:
- 240mm diameter Plate/base board,2pcs set
- Battery mounting plate:1pcs
- Landing gear set:includes corresponding carbon fiber tube,clip,screws ans nuts
- 8pcs Corresponding motor mounting plate
- 8PCS 2mmx22mm thickness 3K Carbon fiber tube(500mm length,can be cut by youself if it is too long)
- Enough CNC Aluminium 22mm dia fixtures
- Other accessaries which is needed to install a multicopter
Recommend Accessories(not included):
It is depend on you to choose KV Value,you can take the specfication of motor as reference
- Hengli W4830 Brushless Outrunner Motor: 480KV 420KV 380KV
- Hobbywing 40a OPTO ESC
-14inch Wood Propeller or Original APC 14" CW/CCW Propellers
- Filight Control system:Compatibl with Most Flight control board,sugguest use DJI WKM,YS-6(44x44 or 45mmx45mm mounting hole). Such as aq50d KK MK and so on
