• PTK 7455MG-D Metal Gear Micro Digital Servo 450 Helicoper Inclined Plate Servo for Aircraft

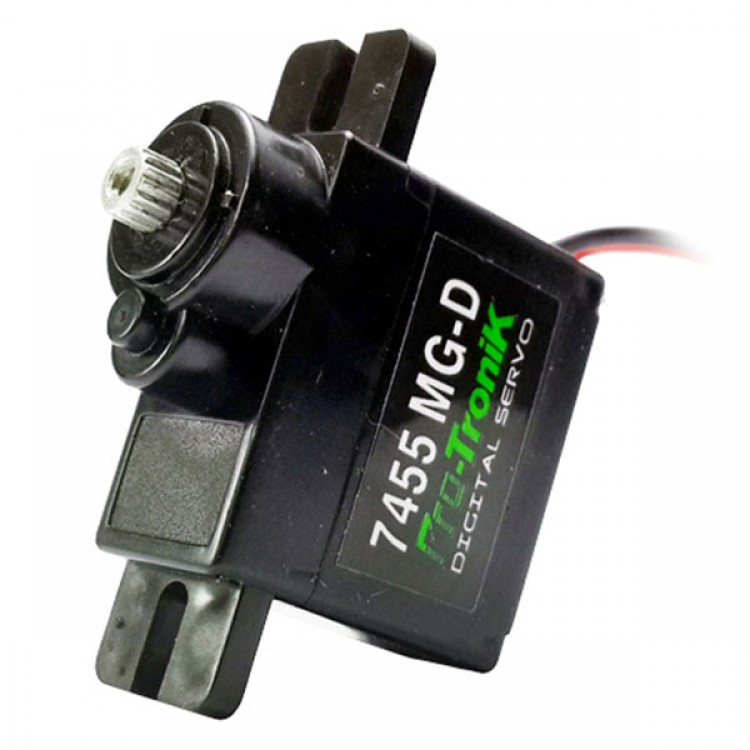

PTK 7455MG-D Metal Gear Micro Digital Servo 450 Helicoper Inclined Plate Servo for Aircraft

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.82
  • Price in reward points: 98 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.62 $9.43 $9.13 $8.74 Contact US
Quantity:

PTK 7455MG-D Metal Gear Micro Digital Servo 450 Helicoper Inclined Plate Servo for Aircraft

7455 universal specification:

- Control system: Swip
- Test voltage range: 4.8V---7.4V
- Test temp: -20---60degree

Testing parameters:
Test voltage          4.8V            6.0V            7.4V
- Torque force:    3.3kg/cm    4.2kg/cm    5.3kg/cm
- Unload speed:      0.12          0.13           0.105
- Unload current      4mA          5mA            6mA
- Operation current   250mA      300mA        350mA
- Block current:          1.1A           1.3A           1.5A
- Dead zone             3us
- Response time        2us

Specification:
- Dimension: 23.6*26.9*11.5mm
- Weight: 16.1g
- Bearing: 4*7*2
- Gear material: alluminum gear

Servo cable parameters:
- Length: 250mm
- Servo cable type: AWG25
