Features:
- PIXHAWK I2C & Optical Flow Sensor Module I2C
- MT9V034 machine vision CMOS sensor with global shutter
- Optical flow processing at 4×4 binned image at 120 (indoor) to 250 Hz (outdoor)
- Superior light sensitivity with 24×24 μm super-pixels
- Onboard 16bit gyroscope up to 2000°/s and 780 Hz update rate, default high precision-mode at 500°/s
- Onboard sonar input and mount for Maxbotix sonar sensors. PX4 Flow comes with the sonar already mounted and installed. MB1043
- USB bootloader
- USB serial up to 921600 baud (including live camera view with QGroundControl)
- USB power option
Note:PX4Flow is not currently supported by APM:Plane,APM:Copter,and APM:Rover firmware.
Package Include:

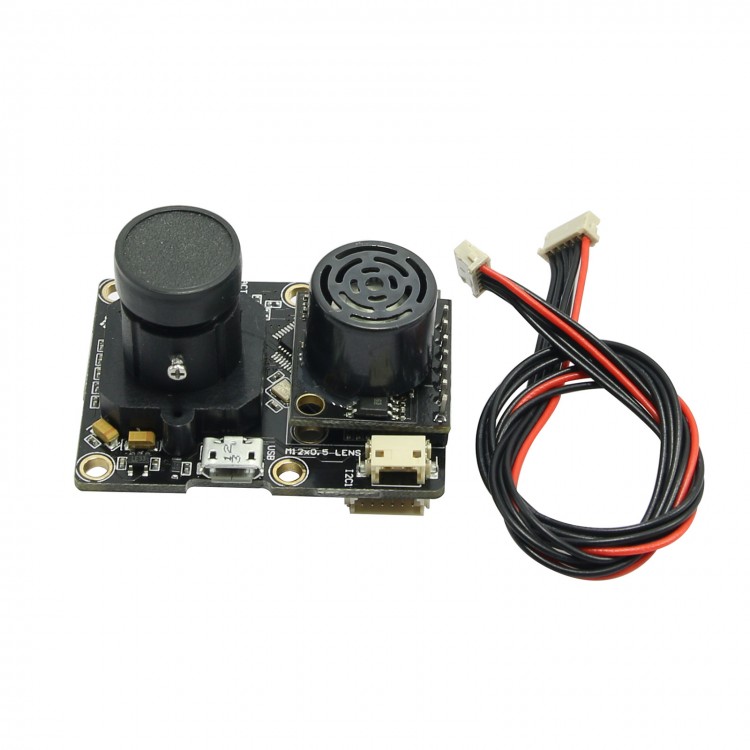

- 1 x PX4FLOW Board
- 1 x HRLV-Massonar MB1043
- 1 x 6pin to 6pin 1.25mm connection leads
- 1 x 4pin to 4pin 1.25mm connection leads
