Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $13.00 | $12.74 | $12.34 | $11.81 | Contact US |

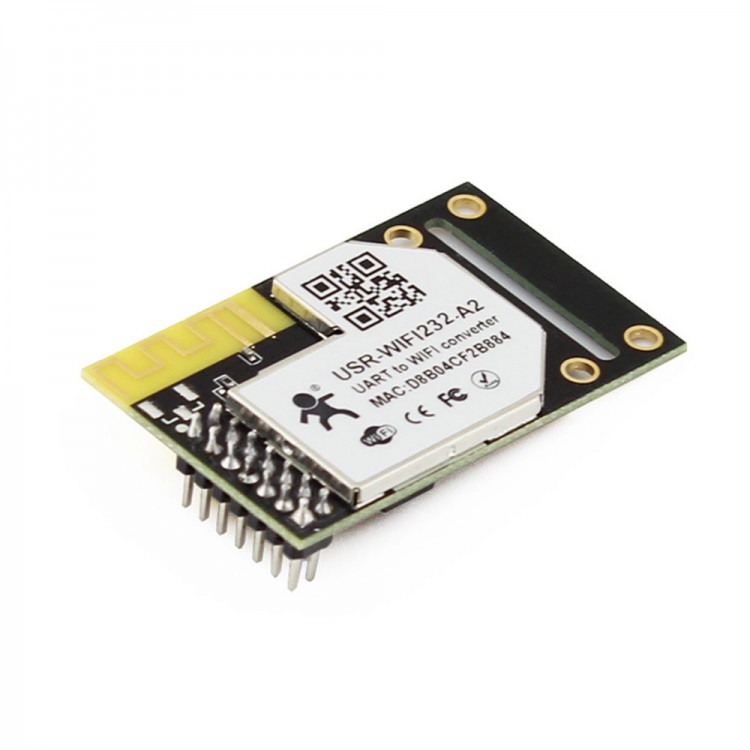

Q18043 USRIOT USR-WIFI232-A2 TTL UART to Wifi Wireless Module Onboard Antenna DHCP DNS Function
Introduction :
USR-WIFI232-A2 is an embedded 802.11 b/g/n wifi module. It can connect traditional serial device and MCU controlled device with wifi network to realize control and management. And the module can realize bidirectional transparent data transmission between serial and wifi network with simple setup.
Feature:
- Support 802.11b/g/n wireless standard
- Support TCP/IP/UDP network protocol
- Support UART/GPIO/Ethernet data interface
- Support work as STA/AP/AP+STA mode
- Support router and bridge mode
- Internal antenna
- Support transparent transmission mode
- Provide AT+ instruction set for configuration
- Provide friendly web configuration page
- Support heartbeat signal and wifi connection indication
- Support UART auto-frame function
- 3.3V power supply
Package List:
- 1 x Module
