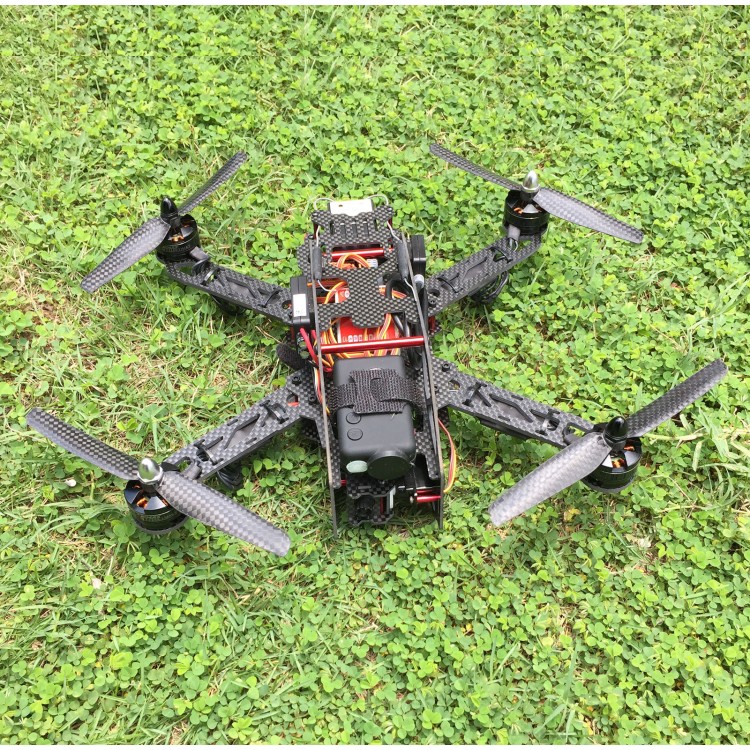

QAV280 Carbon Fiber Quadcopter &CC3D Flight Controller & Emax 2204 & 12A ESC & 6030 Carbon Propeller for FPV Photography

QAV280 Carbon Fiber Quadcopter &CC3D Flight Controller & Emax 2204 & 12A ESC & 6030 Carbon Propeller for FPV Photography

Parameters:
- Wheelbase: 280mm
- Weight: 129g
- Suitable motor: 1806/ 2204
- Propeller: 5-6 inch
- Suitable battery: 1500mah-2200mah
- ESC: 10A-12A

MT2204 Motor Description:
- KV: 2300
- Max thrust: 440G
- No. of cell: 2-3S
- Propeller: 5-6 inch
- Length: 32.2mm
- Weight: 25G
- Shaft: 3mm
- Diameter:27.9mm

Emax ESC Features:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r（2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC


Package includes:
- QAV280 frame kits x 1 set
- CC3D Flight Controller  x 1
- Emax 2204 (CW+CCW)  x  2 pairs
- Emax 12A ESC x  4
- 6030 Carbon Fiber Propeller  x  2 pairs
- Mini FPV Camera (Note: Not 808 Camera)  x 1
- Gimbal Servo x 1
- ESC distribution board x 1
