Rabbit CF Hight Direction Fixed Flight Controller+Rabbit GPS Receiver Module Combo

Rabbit CF Hight Direction Fixed Flight Controller+Rabbit GPS Receiver Module Combo

Note:
- IF You have any problem with Rabbit Control board, feel free to contact us (service@thanksbuyer.com).
. With the permission from the Rabbit factory, we will provide technical backup for you.
- The Rabbit flight controller can not be supplied to China,Twain,HongKong,Macro;any order of these areas would be refunded.

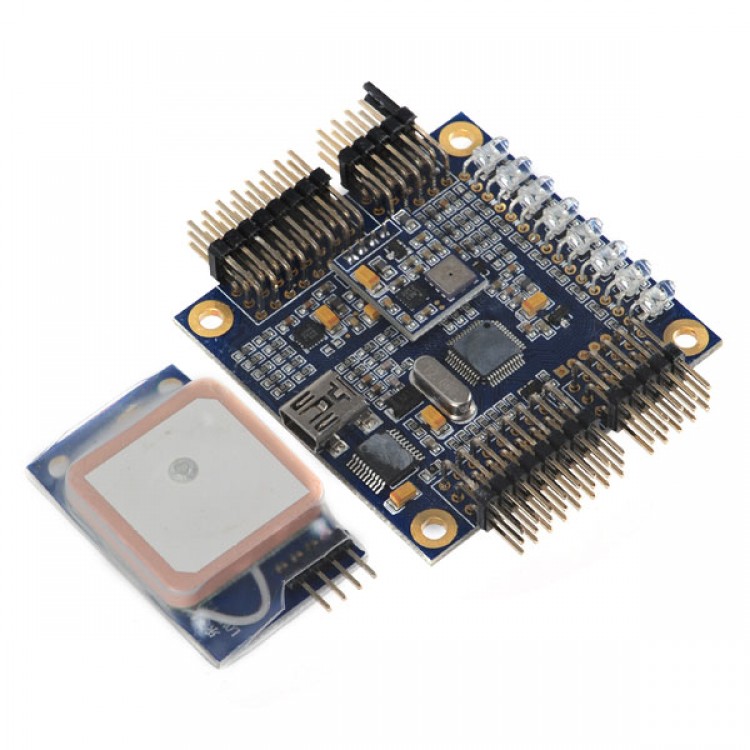

- This Combo includes Rabbit Flight Controller for Quadcopter Multicopter with Fixed Hight Direction Care Free CF and Rabbit GPS Receiver with u-blox GPS module for Rabbit Flight Controller.

Part 1:Rabbit Flight Controller for Quadcopter Multicopter with Fixed Hight Direction Care Free CF
Description:
- This Flight controller adopts 32 Digits ARM CPU and latest sensor with Independent research and development software, ensuring stable and reliable flight in a simple setting suface.
- The board contains high precision tri-axis gyroscope and tri-axis accelerometer with compact structure and size.
- With stable and balance function without any additional board.
- Multi-function: can be connect with ultrasonic, pressure meter,tri-axis magnetic sensor,GPS,thus to reliaze Fixed Hight,Fixed Direction, and self- lift-and- down function.
- 8 Channel remote input and 8 Channel motor/servo output.
- Support aerial photography and PTZ Self-Balance.Output mode can be set by user.
- With USB interface, Upgrades PC and adjusts parameters without Expansion Board.
- Provides PC upgrade tools and improve program according to majority users requirements .

Features:
- With care free function
- 32 digits 50 MHZ CPU
- Support 140g mini quadcopter.
- with  high precision tri-axis gyroscope and tri-axis accelerometer with compact structure and size
- 8 CH recieve channel, can set Auxiliary switch channels and  PTZ control channel except 4 Rocker channel.
- 8 channel 16 digits output channel,can set 50Hz～500Hz analog/didital servo or non- standard ESC singal.
- Supports mix-control: GIMBAL,BI,TRI,QUADP,QUADX,Y4,Y6,HEX6,HEX6X,OCTOX8,OCTOFLATP,OCTOFLATX,FLYING_WING,FIEXD WIND mode and so on. can be add other mode according to users requirement.
- Provides PC upgrade tools and improve program , convienent for users to set parameter,and download the newest program.
- Supports quad-axis, hex-axis,eight-axis quadcopter( can not connect to PTZ as all the pins used to connect motor)
- 8 LED singal to indicate various mode, convinient to set parameters anytime even for a tiny adjustment. Can connect color LED strip, makes magnificant and unique night flight.
- supports 4S battery Voltage test, avoid overdischarge.
- provide alarm port,facilitate users to set low power alarm, the warning tone will be more pressing as the power lower and lower.
- with ultrasonic port, makes fixed hight function range 2 meters, perfect performance especially for the ground grading.
- with equipment selfcheck function, make sure safty flight . with sound and light signal in the selfcheck procedures.
- with high precision tri-axis gyroscope and tri-axis accelerometer,facilitate users to add functions such as Automatic landing and Fixed-point return.(just buy additional board and download online upgrade software is ok)
- with  Independent research and development software, can improve or add new functions as user's requirements.
- Optinal output mode: Default ESC output 330MHZ.47HZ servo output, Servo/ESC output option:50Hz(20ms);100Hz(10ms);270Hz(3.6ms);330Hz(3ms);500Hz(2ms Special ESC);2KHz PWM(Special ESC)
- Come with a ultrasonic module

Specifications:
- Alarm Voltage setting:3.4V～3.7V
- Gyroscope: +-2000dps,16 digits resolution ratio, responding time:1000HZ
- Accelerometer: -8G,14 digits resolution ratio, responding time:800Hz
- Input Voltage:4～6V (provides by ESC)
- Board Szize:5.5mmX5.5mm
- Weight:20g
- Working Temperature:－40～+85

Part 2:Rabbit GPS Receiver with u-blox GPS module for Rabbit Flight Controller

Rabbit GPS adopts ublox brand GPS module which was regarded as the best for the performance.Feartured High accuracy, low drifting, stable and high price ratio.

Features:
- Rabbit GPS needs a very stable and reliable aircraft debugged.
- GPS ceramic antenna faces up, GPS and Rabbit Flight Controller should keep a distance of more than 10cm.
- The rabbit GPS is connected to the flight controller pinout with 4Pin Dupont line.
- The normal work of Rabbit GPS needs the cooperation of self stability mode, height lock, magnetic sensor.
- Operate for Rabbit Flight Controller and Rabbit Flight Controller with Fixed Hight Direction Care Free.
- The rabbit flight controller can fit for the GPS module now,and we also provide the firmware for the old rabbit FC users.

Specifications:
- Demensions: 40 x 26 x 12mm (L x W x H)
- Weight: 18gram only

NOTE:

The normal work of GPS module has a great relationship with GPS signal and weather factors,so players should consider all kinds of factors on GPS signal influence and keep safety first, effectively prevent all sorts of accidents. We do not bear any responsibility for various accidents or loss of property during the flight process.
