|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$13.62||$13.34||$12.93||$12.37||Contact US|

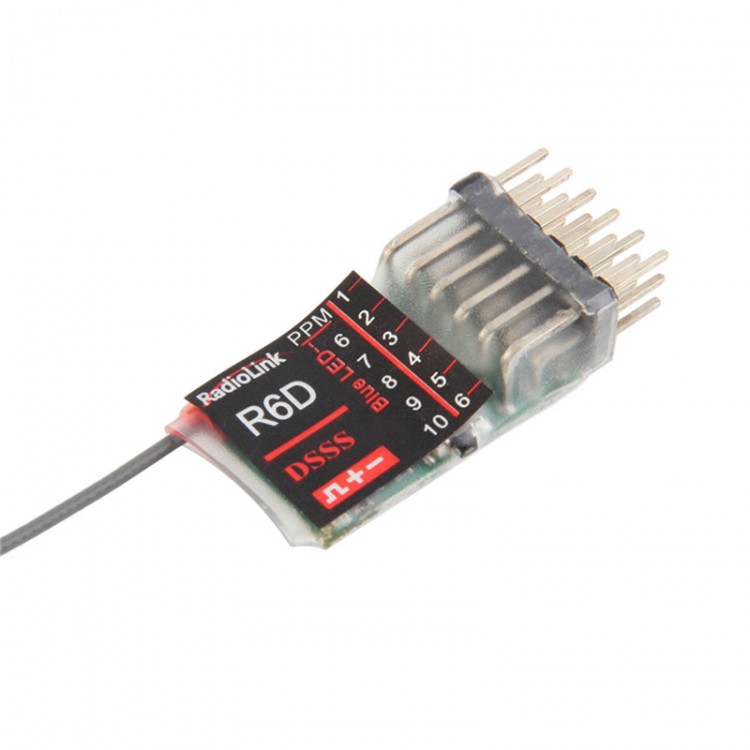

Radiolink DSSS Receiver 2.4G 6CH R6D for AT9 AT10 Transmitter RC Airplane Drone Quadcopter
1. DSSS technique, super anti-interference.
2. RX voltage and signal strength telemetry
3. All 6 channel needs 3ms to response parallel.
4. Section precision 4096, stable the servo, rudder shaking free.
5. HV input up to 6V.
6. MINI design for convenient assembling and operating.
- Raiolink--R6D-2.4GHZ - 3.9G ultra compact dual signal output receiver
- Raiolink R6D 2.4G PPM six channel and PWM dual signal output receiver, uses DSSS direct expansion anti-jamming technology, suitable for Radiolink transmitter AT9 and AT10.
- R6D re-definite the dual signal output of the receiver - SBUS R9D and PWM dual signal output technology, R6D supports PPM and PWM dual signal output.
- All channels at the same time: 3MS rapid response;
- Support all the flight control: DJI Naza, zero tech, pix, APM, mini APM, NAZE32, CC3D etc. the PPM signal connecting flight control.
Two signal modes:
1) PWM signal output: 6 channels at the same time output PWM signal;
2) PPM signal output: a channel outputs 10 channels PPM signal, while the 2-6 channel can outputs independent PWM signal.
- Channel: 6channel
- Max input voltage: 6 V
- Current: 38-45 mA Voltage input: 5V
- Size: L*W*H=38*16*11mm
- Section precision 4096
- Weight: 3.9G
- Resolution: 4096
- 1 * RadioLink R6D 2.4G 6CH DSSS Receiver
