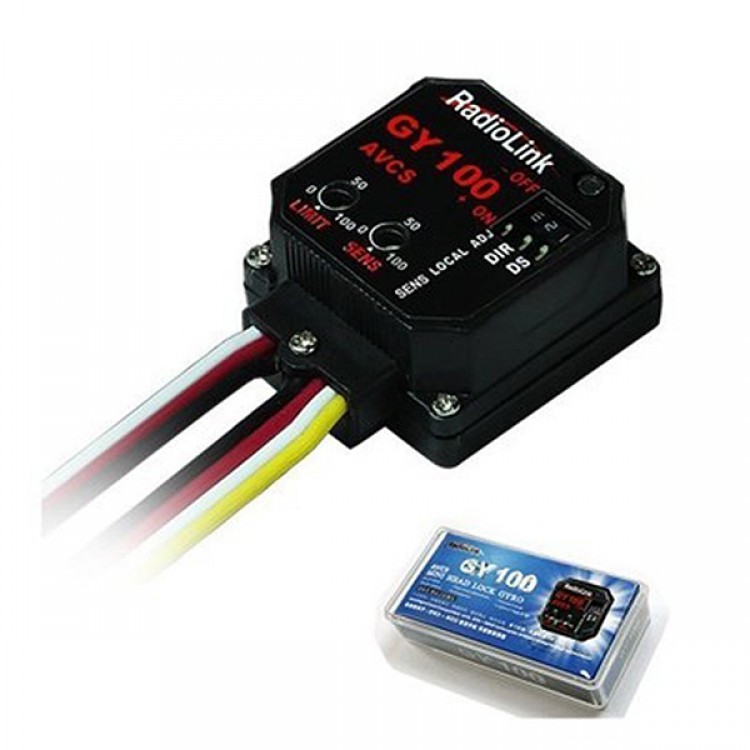

Radiolink GY100 AVCS Rate Gyro MEMS for RC Helicopter GY520 GY401 KDS820

1) The GY100 is a high performance, compact, light weight AVCS (Angular  Vector Control System) gyro developed for model helicopters. Because the  sensor and control circuit are integrated, it is simple to install. Futaba  S9257 high-speed digital servo for gyro use is recommended.
2) Dual sense adjustment: You can adjust sense on transmitter or gyro
3) Precise/Linear:
Wide gyro rate range from 0.5degree/s to 800degree/s, offer faster, smoother  response and consistent pirouette rates;
Steady head-lock while hovering, which prevents tail from deviating anytime.
4) Stable control:
Easy to get stable sensitivity, when you rotate helicopter fast, you can  stop it immediately without any trembling!
5) Fast response:Offering superior 2ms response time on DS mode. When you  change the helicopter between raising and descending rapidly, you almost can  not see any tail deviating.
GY100 Ratings (Integrated sensor type AVCS rate gyro)
* Control system: Digital advanced PI (Proportional Integration) control
* Gyro sensor: SMM (Silicon Micro Machine) system vibration gyro
* Operating voltage: +4 to +6VDC
* Operating temperature range: -10° C to +45° C
* Dimensions: 21 x 12 x 25.5mm
* Weight: 9.7g (including connector)
* Functions:
Gyro operation direction switch, DS mode switch, Control sense trimmer,  Limit trimmer, Remote gain control, AVCSrmal mode switching.


LED   indicator

                                                  Gyro state

Fast  twinkle

Gyro  is searching for the center point.

Constant bright

Normal working state


Power  off

Slow  twinkle

Gyro  can' t receive the rudder controlling signal, rudder servo can  not  work.

Intermittent twinkle

The   center point of transmitter has deviated, gyro should be restarted.

Package Includes :
- 1) Gy100--1pcs
- 2) plastics adjust screw driver--1pcs
- 3) double sided tape--2pcs
