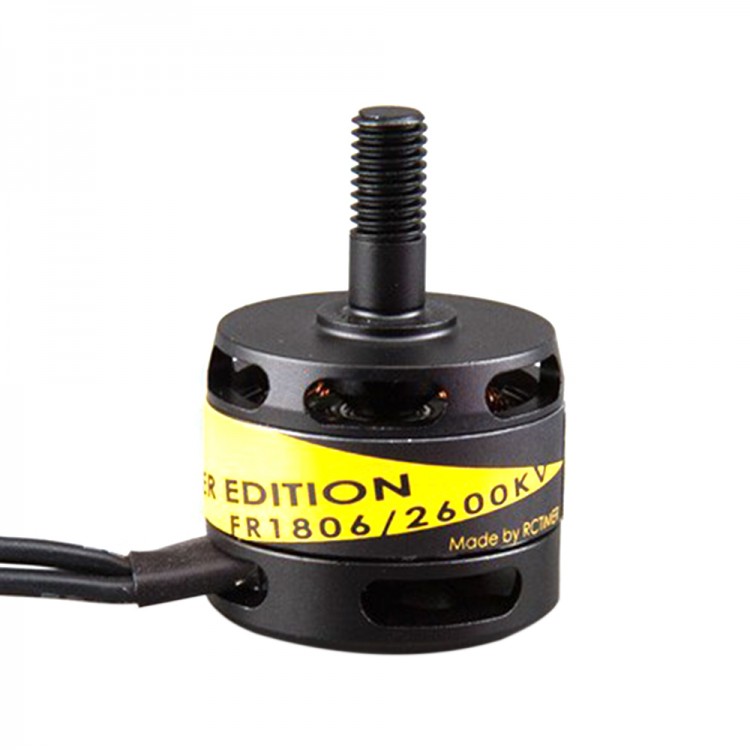

Rctimer FR1806 2600KV Brushless Motor for FPV Quadcopter Multicopter Racing Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$16.06
  • Price in reward points: 161 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.74 $15.42 $14.94 $14.29 Contact US
Quantity:

Rctimer FR1806 2600KV Brushless Motor for FPV Quadcopter Multicopter Racing Drone

Specification:

- Magnet: 42
- Bearing is NMB
- 0.20 mm lamination, maximum efficiency and minimum eddy current loss.
- Ultra flexible motor with high temperature resistance 220 C silicon rubber clues.
- 5.0 mm aluminum flange lock nut
- Stator diameter is 18mm
- Stator thickness is 6mm
- Stator slot number: 12
- Pole number: 14
- Motor KV : 2600 RPM
- No load current (IO) 0.5A @ 10V: 0.6A
- Motor resistance (RM) per phase: 0.18 ohm
- Motor resistance (RM) phase: 0.12 ohm
- Maximum continuous current: 12A
- Maximum continuous power (3 core lithium PO): 140W
- Maximum continuous power (4 core lithium PO): 180W
- Motor weight: 20 G
- Outside diameter 23mm
- Motor shaft diameter is 2mm
- The prop shaft diameter is 5mm
- Body length: 19.5 mm
- Overall shaft length: 32.5 mm
- Motor speed: 5-10 degrees
- PWM frequency: 8-20 kHz

Package includes:
- 1 x FR 1806 2600KV motor
- 2 x 5.0mm aluminum flange lock nut
- 4 x 5MM* M2 screws
