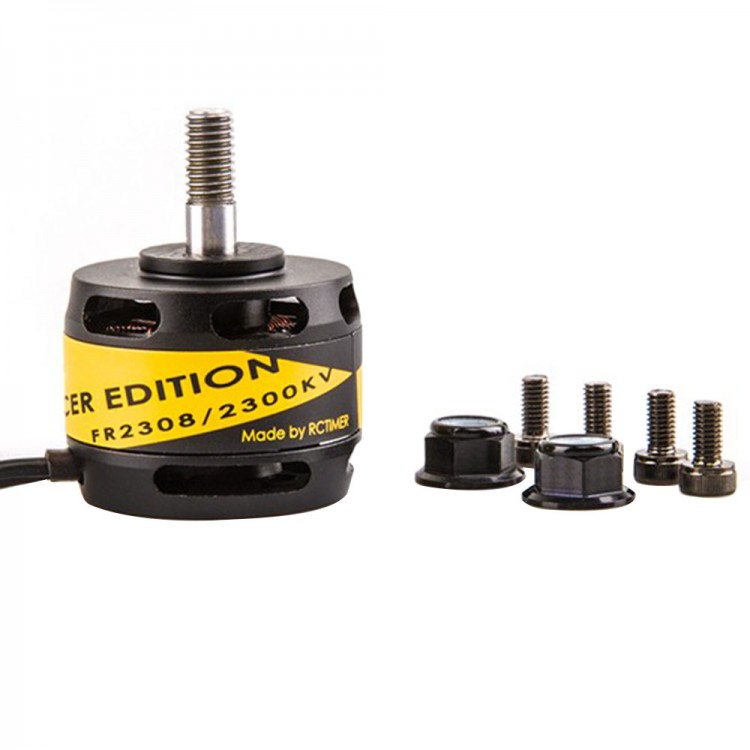

RCTimer FR2308 2300KV Brushless Motor for FPV Multicopter Quadcopter FPV 12N14P

Availability: Out Of Stock

  • Price:$18.35
  • Price in reward points: 184 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.98 $17.62 $17.07 $16.33 Contact US
Quantity:

RCTimer FR2308 2300KV Brushless Motor for FPV Multicopter Quadcopter FPV 12N14P

Features:

- The magnet specification is 42 uh.
- The bearing is NMB(Japan) , it can support a long life.
- 0.20mm laminations, maximum efficiency and minimum Eddy Current losses.
- Ultra-flexible motor leads with high-temp 220 °silicone rubber.

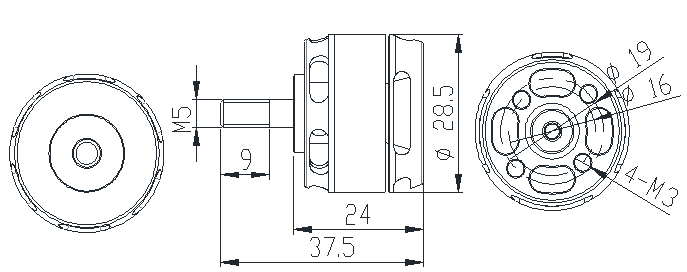

Specification:
- Stator diameter: 23mm
- Stator thickness: 8mm
- Configuration: 12N14P
- KV: 2300
- No.load current@10V: 1A
- Max continuous current: 22A
- Max continuous power: 39360W
- Motor weight: 39g
- Outer diameter:28.5mm
- Shaft: 37.5mm
- PWM frequency: 8-20KHz

Package included:
- 1* RCTimer FR2308 2300KV brushless motor
- Screws
