Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $26.18 | $25.64 | $24.84 | $23.77 | Contact US |

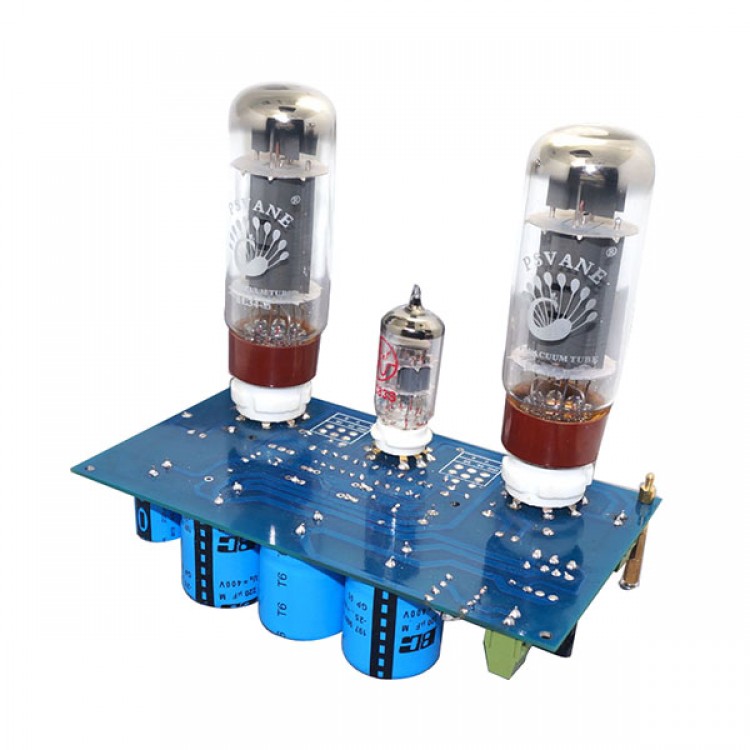

Recommend 10W+10W EL34+ECC83 single-ended Class A Stereo amplifier DIY kit
Specifications:
- This is a kit,don't include the tubes.it need output transformer.
- If you need the 23pcs of tubes(2pcs EL34B+1pc ECC83), pls pay extra $39.99
- Bill of materials:
- PCBX1
- Philips BC220U - 400VX3
- Philips BC22U - 400VX2
- Panasonic 220UFX4
- VIS MKT 0.22UF X 2
- Terminal 2 X2
- U.S. DALE resistance of a
- Seat tube X3
- G40N150D field pipe X1 (used)
- Philips 2A good sound rectifier X4
- Pls note that the tubes and transformer is not included
Download link:http://pan.baidu.com/s/1gfgF22B
Code: q8y1
Note:
- bile is glass, beware of collision, the gallbladder machine with relatively high temperature, generally do not use hand to touch the bulb, for the same reason
- power supply is relatively high, the measurement time do not direct contact by hand pressure. Although the current is very small, not what is dangerous, but direct contact or a little tenderness
