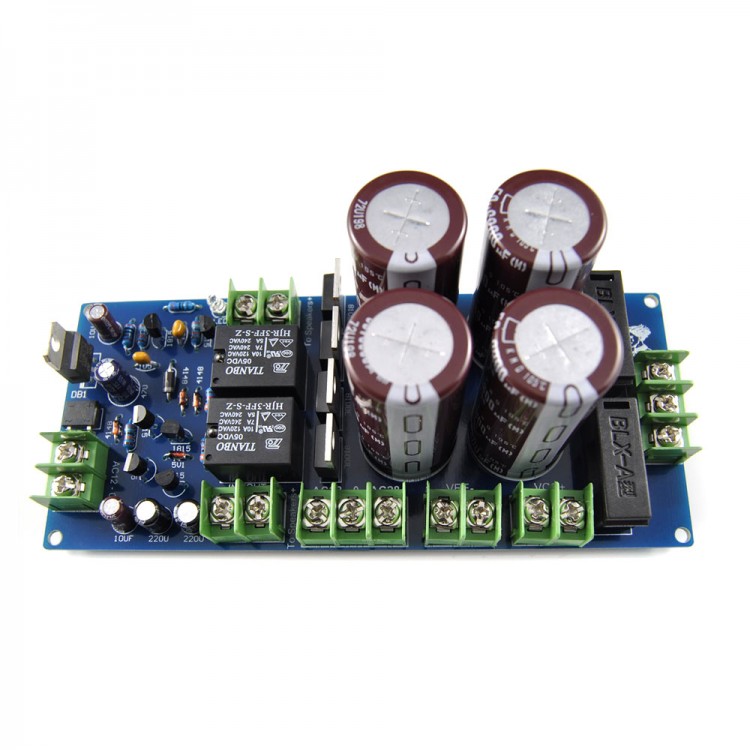

Rectifier and Filter Power Supply Board 63V 5600UF with LED Speaker Protection for Amplifier Assembled

Availability: In stock, usually dispatched in 1 business day

  • Price:$22.58
  • Price in reward points: 226 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.13 $21.68 $21.00 $20.10 Contact US
Quantity:

Rectifier and Filter Power Supply Board 63V 5600UF with LED Speaker Protection for Amplifier Assembled


Specifications:

- Already welded, finished product
- Capacitor :4*63V 5600UF
- Relay 10A*2
- Input voltage AC12-15V
- Amplifier input voltage :<AC35-0-AC35V
- With start delay, output DC protection cut off
- Over current protection and status display LED
- Length: 148mm
- Width: 63mm
- Height: About 52mm
- Full bridge rectifier output current: + -16A

Package list:
- 1 x Power Supply Board
