Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $30.21 | $29.60 | $28.67 | $27.44 | Contact US |

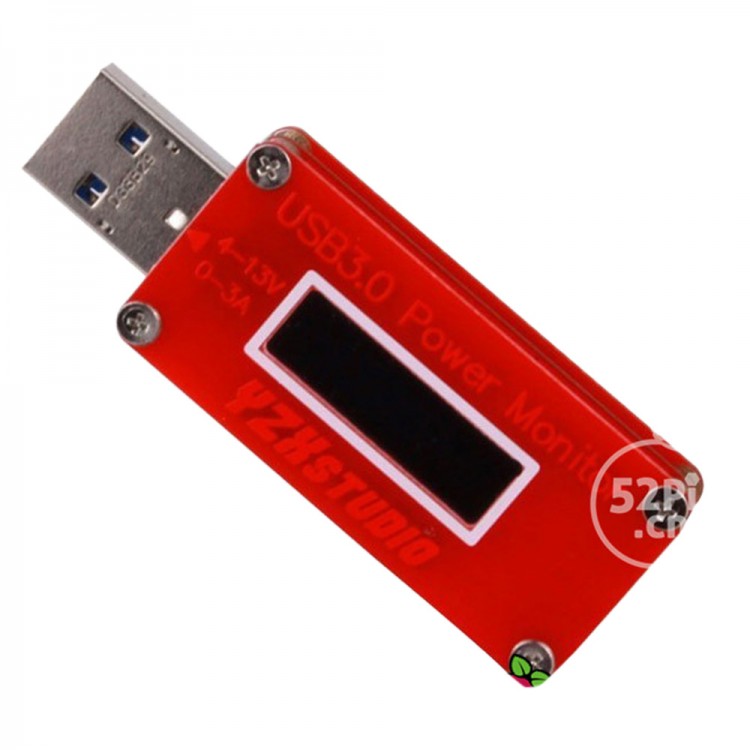

Red USB Power Monitor Tester Measurement Voltage Current Meter High Resolution OLED
Description:
- True 5-digit display
- Using ARM 32-bit processor
- The ferroelectric memory FRAM
- Be able to show real capacity data
- Support mobile power watt capacity test
- High-resolution micro-current detection 0.1mA
- Auto range, automatic decimal point position
- Save multiple sets of test data
- FRAM down longevity record
- 10 mOhms low detection resistor
Features:
- Red PCB appearance
- The high-resolution dot matrix LCD FSTN large LCD screen
- Life much longer than OLED, long-time continuous display, if you do not open the backlight, it will save more power than OLED
- Larger screen, larger fonts, voltage and current curves plotted on the same screen
Specification:
- Interface: USB2.0
- Voltage: 4-15V
- Resolution: 1mV
- Accuracy: 1% + 2d
- Line loss: 42mΩ
- Current: 0-3A
- Resolution: 0.1mA
- Accuracy: 2% + 2d
- Ah Resolution: 0.1Ah
- Ah Accuracy: 0.5%
- Wh Resolution: 0.1mWh
- Wh Accuracy: 0.5%
- Charging time: 100hr
- Temperature: -25 degree ~ 85degree
- Memory: FRAM
- Static power consumption: 5mA
- Color:Red
- Size: Approx.63 * 23 * 12mm
Package included:
- 1 * Mini USB 2.0 Power Monitor (Red)
