RF Vector Impedance Antenna Analyzer ANT SWR Meter Tester Frequency Sweep 1M-200MHz N2021BA
Specifications:
- Model: N2021BA ,English version
- Working frequency :1MHz~ 200MHz
- Frequency step:1Hz
- Monitor:2.4TFT resolution 320x240 (QVGA)
- Battery capacity:2000mAH(7.4Wh)
- Power consumption:<1.5W
- Charging current:400mA
- Charging interface:USB(Only as a charging interface
- Automatic shutdown:Can be set (always open, 5 minutes to 60 minutes)
- Measurement parameters:Resistance, reactance, standing wave, S11
- Resolving power:4Bit effective value
- Frequency accuracy :<±3ppm
- Connector:SMA-K
- Impedance measuring range:0.1-1000Ohm (impedance absolute value)
- Standing wave measuring range: 1.000~ 65
- S11(dB): 0dB~ -60dB
- S21(dB):30dB~ -70dB
- Impedance error: Impedance absolute value x 5%-+ 0.1Ohm (Z<200Ohm)
- Standing wave error: Effective readingX10% -+0.1
- s11 error: 0.1 dB /5° (0dB~-10dB)
- dB/& DEGerror:1 dB /10° (-10dB~-20dB); 5dB/20° (-20dB~-40dB)
- S21 error: ±2dB
- S11 Directional:35dB(140MHz ~ 2GHz after calibration); 30dB (2GHz ~ 2.7GHz)
- Points: 280
- Output level: -18dBm
- Working temperature: 0C ~ 40 C
- Atmospheric pressure:860hPa~ 1060hPa
Package list:
- 1 x N2021BA RF Vector Impedance Antenna Analyzer

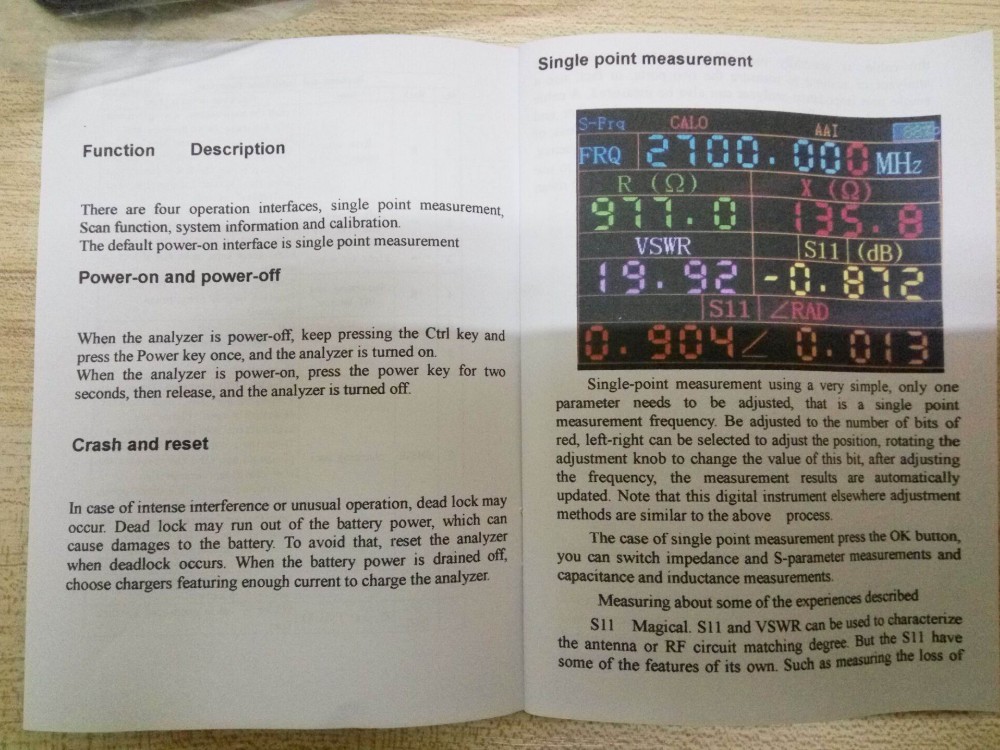

- 1 x Manual
- 1 x Data cable
