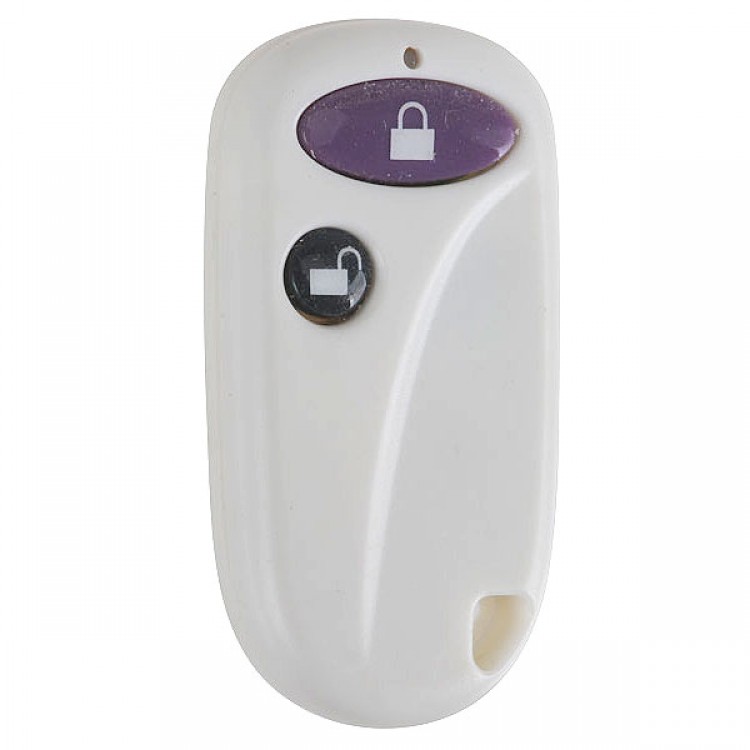

RF Wireless Remote Control Lock & Unlock 2 Buttons Remote Controller 02-C1

Availability: In stock, usually dispatched in 1 business day

  • Price:$4.74
  • Price in reward points: 47
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $4.65 $4.55 $4.41 $4.22 Contact US
Quantity:

RF Wireless Remote Control Lock & Unlock 2 Buttons Remote Controller 02-C1
Specfications:
- Transfer: wireless
- Static current: 0uA
- Modulation: ASK
- Frequency:315MHZ/433.92MHZ
- Working Voltage:DC12(V)
- Low power consumption
- Working current:<8mA
- Power:≤10mw
- Remote Distance:50-100m(receiver sensitivity-108dbm)
-  Performance Characteristics: Adopting high-quality chip control, stable & sensitive
- Transmitter with SAW resonator, stable frequency, less interference, far remote control distance, low power consumption
Application:
- electric, motorcycle, automobile anti-theft alarm, home security products, short-distance wireless remote control products, industrial control products, remote control electric door, remote control curtains, remote control switches, security, central locking, remote control lift, traction machines

- Works with the following remote control modules (please check your existing remote control before ordering): Your remotes also should be Fixed code or Learning code.
- 2260, 2262,  FP527, HT12D ,  HT12E ,  PT2240,   S026-1 ,S026-2 ,S026-3 ,S026-4, SMC918.... etc

How to use the remote controller( as reference)

1. Clear out code:
To Clear up test stored rf signal memory from factory by pressing the locking key and unlock the key at the same time, two seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. Indicates that the remote control codes stored has been cleared out.
2, Duplicating (learning)
 Hands are holding remote control , and the other are holding the duplicating remote control, 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A’,B-B’) three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that this copy of the remote control buttons are same as copied on the remote control button codes . Several other keys are also according to the above approach to learning.
3, Recovery code
 If the code copied have been mistakenly removed the remote control, you do not worry, the remote control can restore yourself. Method is pressing (up-down eg: locking key and bell key) two buttons (metal shell remote control on the left, the plastic shell remote control on the right) at the same time ,3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.

The other way, you can delete all and relearn them again
