• RFM22B FSK Module Cost High Performance ISM Band RF Transceiver Module RFM22

RFM22B FSK Module Cost High Performance ISM Band RF Transceiver Module RFM22

Availability: In stock, usually dispatched in 1 business day

  • Price:$5.91
  • Price in reward points: 59 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $5.79 $5.67 $5.50 $5.26 Contact US
Quantity:
  This product has a minimum quantity of 2

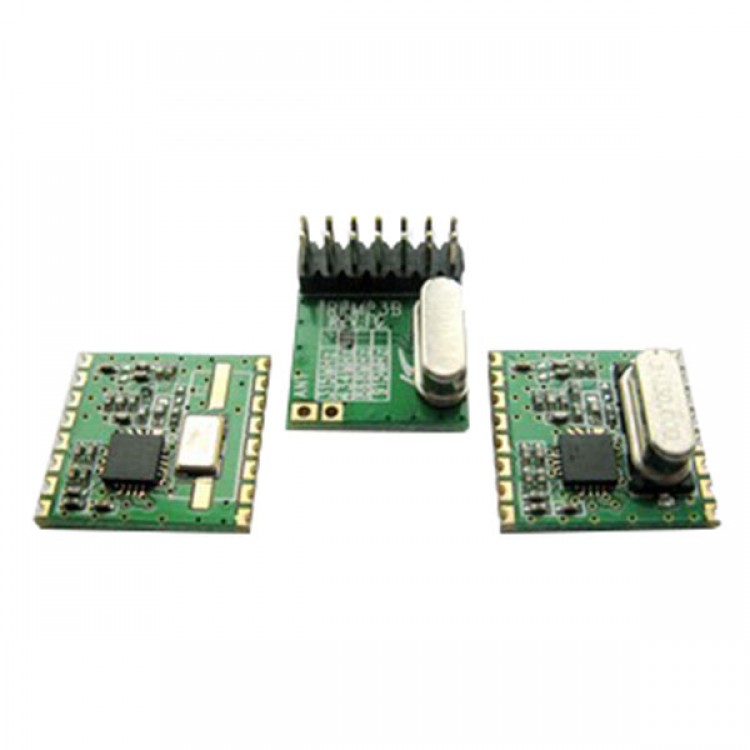

RFM22B FSK Module Cost High Performance ISM Band RF Transceiver Module RFM22

Description

- RFM22B is a low-cost, high-performance ISM band RF transceiver module. RFM22B highly integrated, reducing BOM cost and simplifies product design, appropriate to shorten the development cycle. High sensitivity (-121dBm) and high power output (20dBm) feature extends the communication distance and significantly improves the quality of communication. diversity and support for frequency hopping function within the integrated antenna makes the performance can be further improved. Meanwhile, Maple also provides a simple and convenient calculator for quick configuration parameters in order to register simplify system design and reduce customers' products to market cycles.

Features:
- Frequency range :240-930MHz
- Sensitivity:-121dBm
- Maximum output power: 20dBm
- Low power consumption: 18.5mA (receiver); 85mA @ +20 dBm (transmit)
- :0.123-256kbps data transfer rate
- FSK, GFSK, and OOK modulation mode
- 1.8-3.6 V power supply
- Ultra-low consumption shutdown mode
- Digital received signal strength indication (RSSI)
- Timed wake-up function
- Automatic frequency control (AFC)
- Power-on reset function
- Automatic matching and bi-directional antenna switch control
- Configurable packet structure
- Preamble detection
- 64-byte transmit and receive data register (FIFO)
- Low power detection
- Temperature sensor and 8-bit ADC
- Operating temperature range: -40 ~ +85 ° C
- Integrated Voltage Regulator
- Hopping function
- Built-crystal adjustment
- 20-pin QFN package
