RGB Light Bar Driving Module Input Voltage 5V or 3.3V

Availability: In stock, usually dispatched in 1 business day

  • Price:$8.09
  • Price in reward points: 81 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.93 $7.77 $7.52 $7.20 Contact US
Quantity:

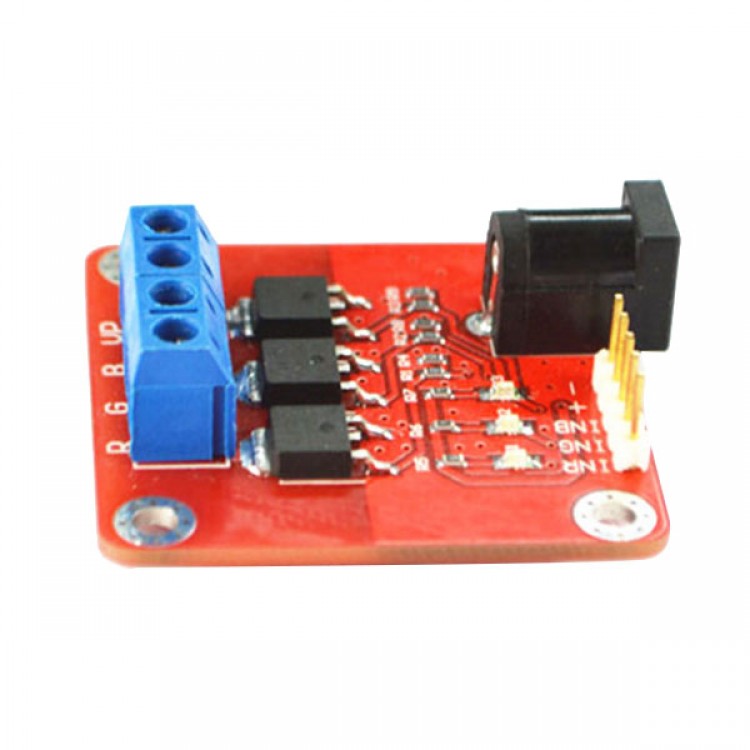

RGB Light Bar Driving Module Input Voltage 5V or 3.3V

Specs:

- Working voltage: <= 12V (DC port)
- Max power: 43.2W (single channel)
- Module size: 41*30mm

Features:
- Integrates three N MOSFET, can not only drive 12V light strap directly, also drive RGB full color light strap
- Max withstand voltage: 25V, current max 6A, can fully satisfy light strap driving condition
- Signal interface is reserved, permitting arduino controller controls its color changes
- Independent DC port, the power supply can be input through DC battery or DC power adapter
