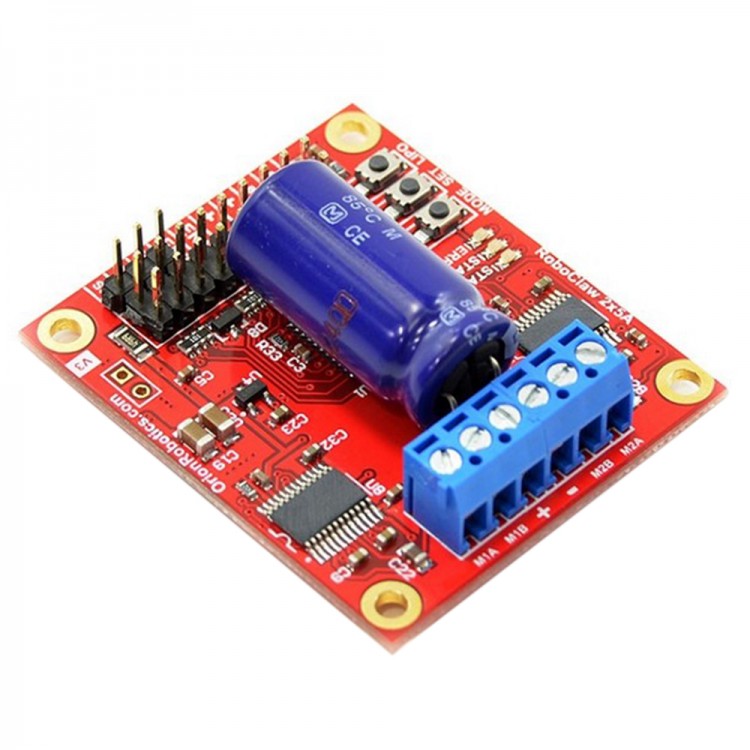

RoboClaw 6V-34V 2x5A Motor Drive Board Dual Channel DC Motor Controller
Specification:
- Product Name: 2X5A RoboClaw motor driver board (V4)
- Motor channel: 2
Control or information exchange interface:
- Logic level (TTL) is directly connected to the micro controller serial interface or other embedded controller, or connected to the computer serial port (external RS-232 converter) or USB to serial adapter.
- Radio control (RC) is directly connected to the pulse width of interface of a RC receiver or RC servo controller.
- 0~5V (5V voltage) analog voltage can be directly connected to the interface or analog rocker potentiometer.
- Working voltage: 6 V~34V
- Each channel continuous output current: 5 A
- Each channel peak output current: 10 A
- Size: 4.2cm * 4.8cm
- Weight: 45g
Instructions: Click here
Schematic diagram: : Click here
Package included:
- 1 x Motor Controller
