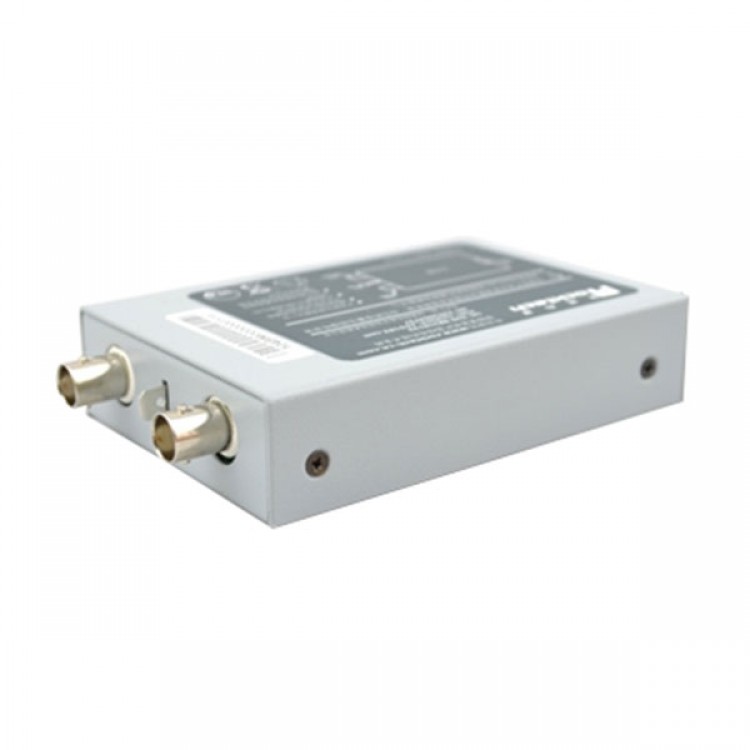

Rokettech BM102S PC Based USB Digital Oscilloscope 20Mhz Bandwidth 50MSa/s

Availability: In stock, usually dispatched in 1 business day

  • Price:$53.96
  • Price in reward points: 540 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $52.88 $51.80 $50.18 $48.02 Contact US
Quantity:
Rokettech BM102S PC Based USB Digital Oscilloscope 20Mhz Bandwidth 50MSa/s

Features:
- USBXITM standard interface, convenient insert USBXITM case, the combination of instruments
- USB2.0 port work with pc.
- More suitable for notebook computer, production line maintenance adjustment, easy to use on a business trip.
- Small size (mm):150(L)x100(W)x35(H)


Technical Index:
Channel
1
bandwidth
20MHz
Single bandwidth
DC to 20MHz
real-time sampling rate-Max
50MS/s
Storage depth
1M
vertical resolution
8Bit
impedance
1MΩ 25pF
Coupling
DC
Voltage range
20mV-5V, 8Steps
Vertical Accuracy
±3%
range
1ns-5000s, 39 Steps
The vertical position can be adjusted
yes
Input protection
Diode
X-Y
yes
Horizontal
automatic, standard, single
