Product Description:
- Tinysine RS232 RS485 Shield for Arduino - Convert UART to RS232 or RS4

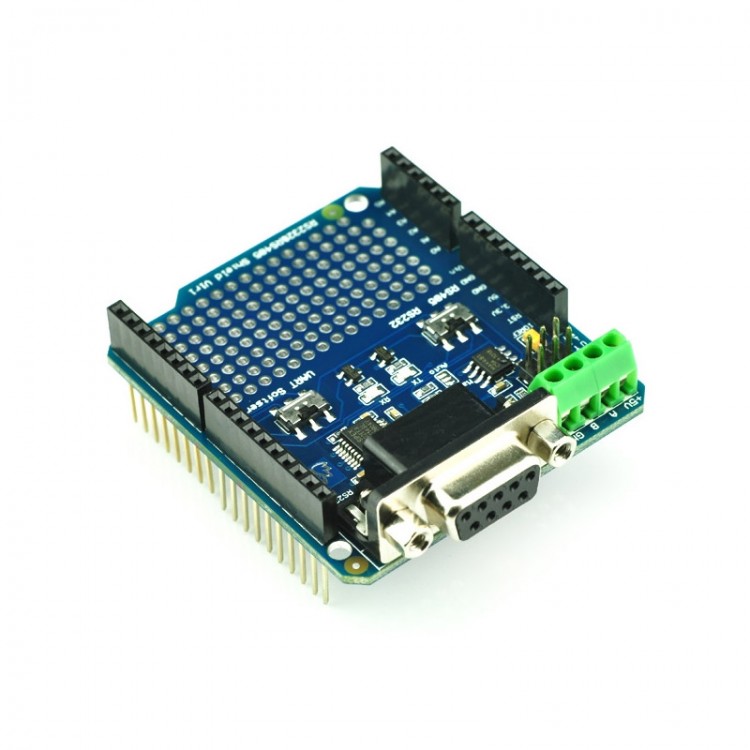

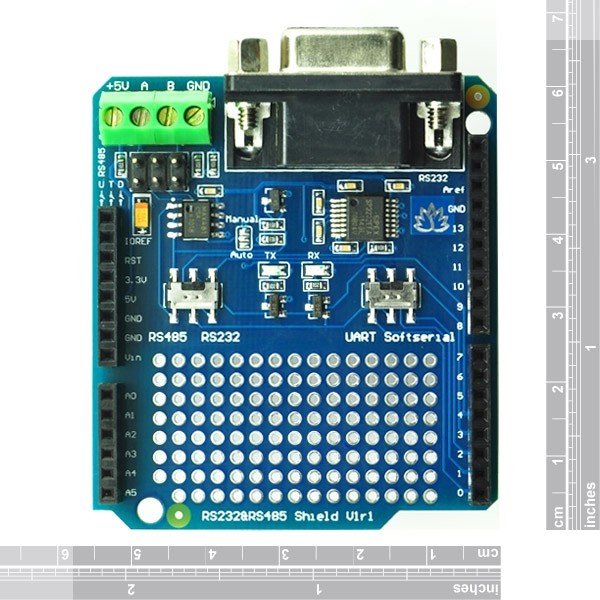

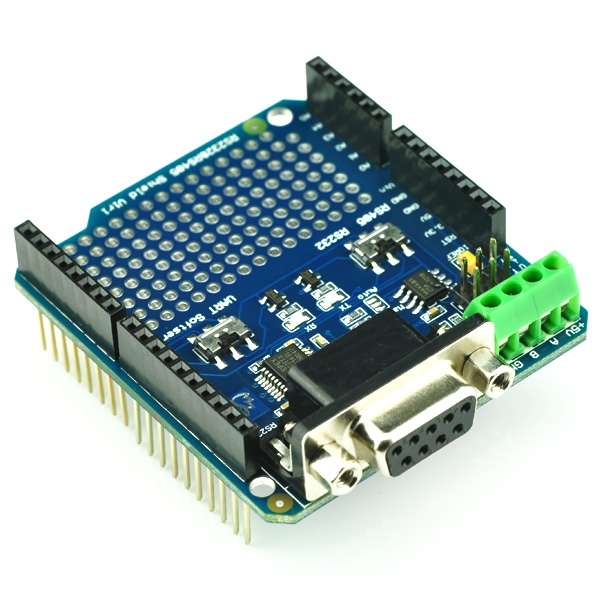

- It is both a RS232 shield and also a RS485 Shield for Arduino.It can easily convert UART to RS232 or RS485 interface.The shield integrates DB9 connectors (female) that provide connection to various devices with RS232 interface and also provide a RS485 screw terminal interface.It provides the prototyping areas to make full use of extra space on it,which is highly convenient for prototyping.

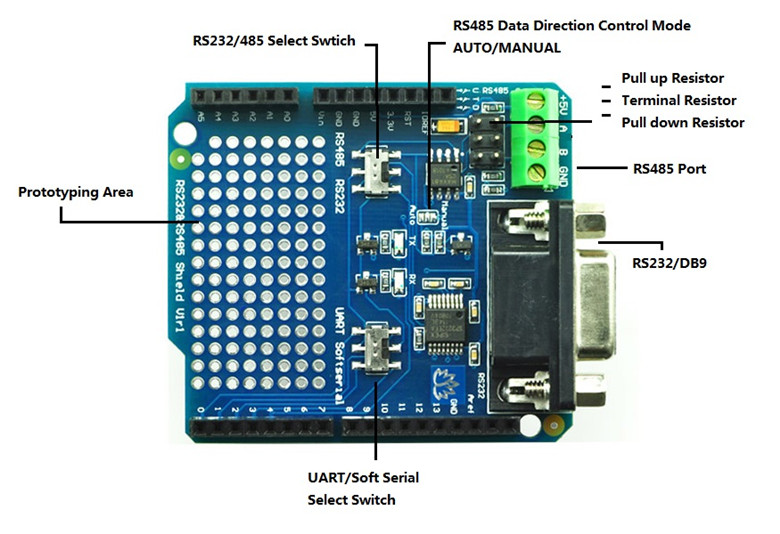

- This shield provides 2 mode setting switch.UART/Soft serial settting and RS485/RS232 setting switch.When UART/Soft serial switched to Soft Serial, you'll be able to programming the Arduino controller or communicate with soft serial;When switched UART, you can use the UART port.
- Arduino sketch and Schematic will be sent separately to the customers after purchase.We cannot write here because of Ebay policy.

Package List:
- 1 x RS232 RS485 Shield For Arduino
- 1 x Dual 485 communication drive program
- 1 x Schematic diagram
- 1 x Chip datasheet
- 1 x User manual
