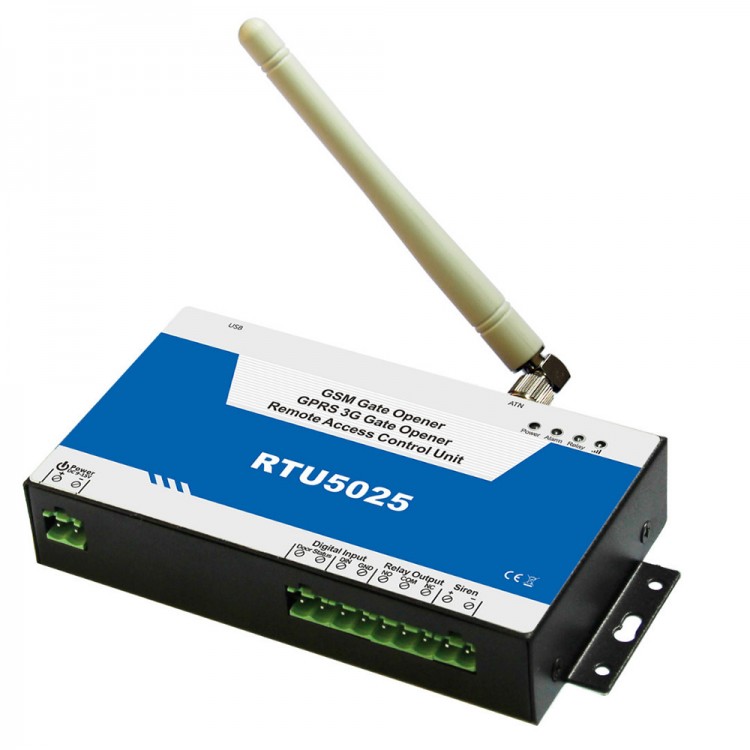

RTU5025 GSM Gate Opener Door Remote Access Controller Phone Control

RTU5025 GSM Gate Opener Door Remote Access Controller Phone Control

RTU5025 GSM Remote Gate/Door Opener:
The RTU5025 is an upgraded version of famous RTU5015 gate opener, a very simple device which can be used for remote control swing or sliding gates and doors or switching devices with authorized access management(Caller-ID),well used on door access, gate control, remote switching, or car parking systems. Actually the RTU5025 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE phone call from your mobile or fixed line telephone.

PC software for programming via USB,remote server system over TCP/IP supported*,users can easily download the access historical data anywhere anytime.

Advantages:
- GSM or 3G band,distribute worldwide applications;
- Up to 999 authorized phone numbers can be configured at the specified time for access control;
- No call charges.Reject calls from authorized number then carries out the turn ON/OFF action on the first 'ring';
- Secure – Using Caller-ID for verification, unknown phone calls are ignored;
- SMS confirmation of relay actions(door open) to the owner or authorized caller number.
- No need remote control or keys for different users;
- Up to 10,000 events log,download the operation historical dat by USB or over GPRS;
- Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);

Digital Inputs
- One Digital input for motion sensor or other sensors to protect your door and windows,SMS alert to owner immediately when triggered;
- One Digital input special for secure door and automatically armed when door closed, SMS alert to owner immediately when door opened illegally.

How RTU5025 Works?
- Put a Mobile SIM Card into the Device.
- Setting by PC software.(WindowsXP, Win7, Win8)
- Call the RTU5025 by Authorized phone number,  Relay Switch ON/OFF to remote control the Gate/Door or other Machine OPEN/CLOSE!
- Download the access historical data by PC software via USB port.

Door status checking alarm and remote control
- Connect wired detector/sensors in tothe DIN1/2.
- When detector/Sensors trigger,RTU5025 send Alarm SMS Text to the 1st ~6th users automatically.
- According to the Alarm SMS, users make a decision to CALL RTU5025 Switch Relay ON or OFF.

NEW GSM Gate Opener RTU5025 well used for:
- Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!
- Intrusion security alarm,remote ON/OFF motors, lights, pumps,generators,valves and machines.
- Home and garage owner
- Business company
- Hotel
- Warehouse
- Parking place
- Hospital
- Other place need remote switching ON/OFF applications. eg. Pump, Motor, Valve, or any need NC/NO contact devices.

Specifications
- GSM Frequency: Quad-band 850/900/1800/1900MHz
- SIM Card: Support 3V SIM card
- Digita Input: 2 NC/NO dry contact
- Digital Output: 1 Relay, 3A/240VAC
- Siren Output: 12VDC/1A
- DC Power supply: 9~24VDC/2A
- Power consumption: 12V input Max. 50mA/Average 50mA
- SIM Card: Supporting 3V SIM Card
- Antenna: 50 Ω SMA Antenna interface
- Temperature range: -20~+60 °C
- Humidity range: Relative humidity 90%
- Backup battery: 3.7V/900mAH
- Exterior dimension: W130mm*D74mm*H27mm
- Net Weight: 260 g

Package List:
- 1 x GSM Remote Gate Opener
