RuiDa RDC6442G CO2 Laser Cutting Engraving DSP Controller System Card 4 Axis Color Diaplay Wireless Operating Panel

Features:
- RDC644XG system is a new generation system for control of laser engraving and cutting, which is developed by RD technology, Ltd.
- High hardware stability, high voltage or static electricity rejection, and friendly 3.5TFT man-machine display.
- This system is provided with stronger software function including perfect 4-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility,multi-channel general/special IO control, and, this system can communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system.
- Digital laser control signals:TTL level output, 50 mA,drive capability(can set enable signal polarity in software); PWM frequency 2K-50K for adjustable; PWM duty ratio is 1% ~ 99%, adjustable; PWM value is up to 5.0 V
- Motor control signal:common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ
- USB: Max. transmission rate 12M bps; The longest distance is 5 meters.
- Network:Max. transmission rate is100M; Max. transmission distance is 200M.
- Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse
- Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
- Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level

Specification:
- Product Model : RDC6442G
-The sixth generation controller
- Controller version
- 4-axis
- X: displayer type (1: TTF; 2:3.5 inch colorful screen; 3: 5.7 inch colorful screen; 4:7 inch touch screen)
- G: standard
- Application area: laser cutting, laser engraving, laser welding etc.
- Power:+24V, >2A
- Temperature: 0~50 °, humidity is not greater than 70%.

Connection Diagram:

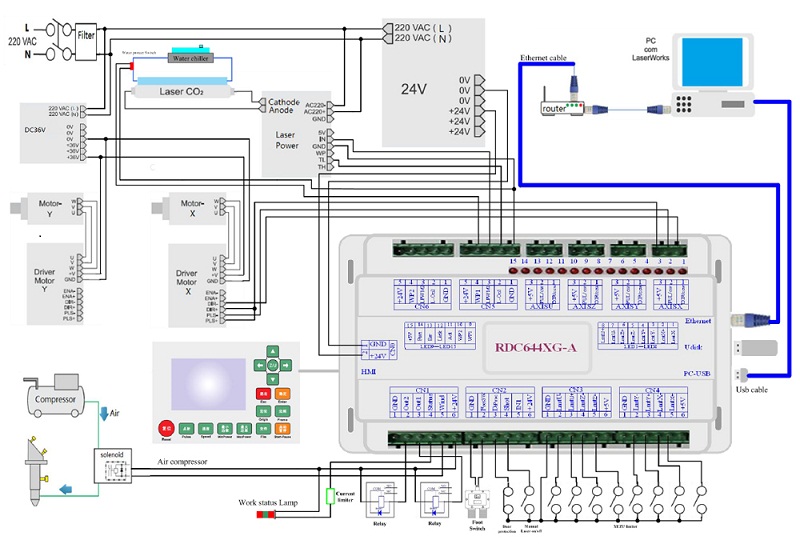

- Electrical Connection of Control System:

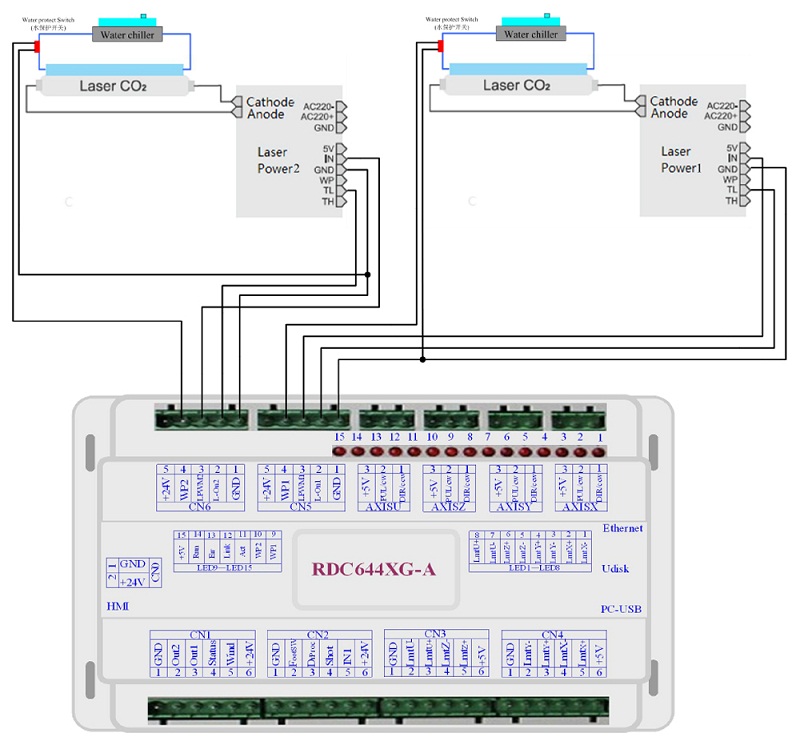

- Connection of Glass Tube Laser Power:

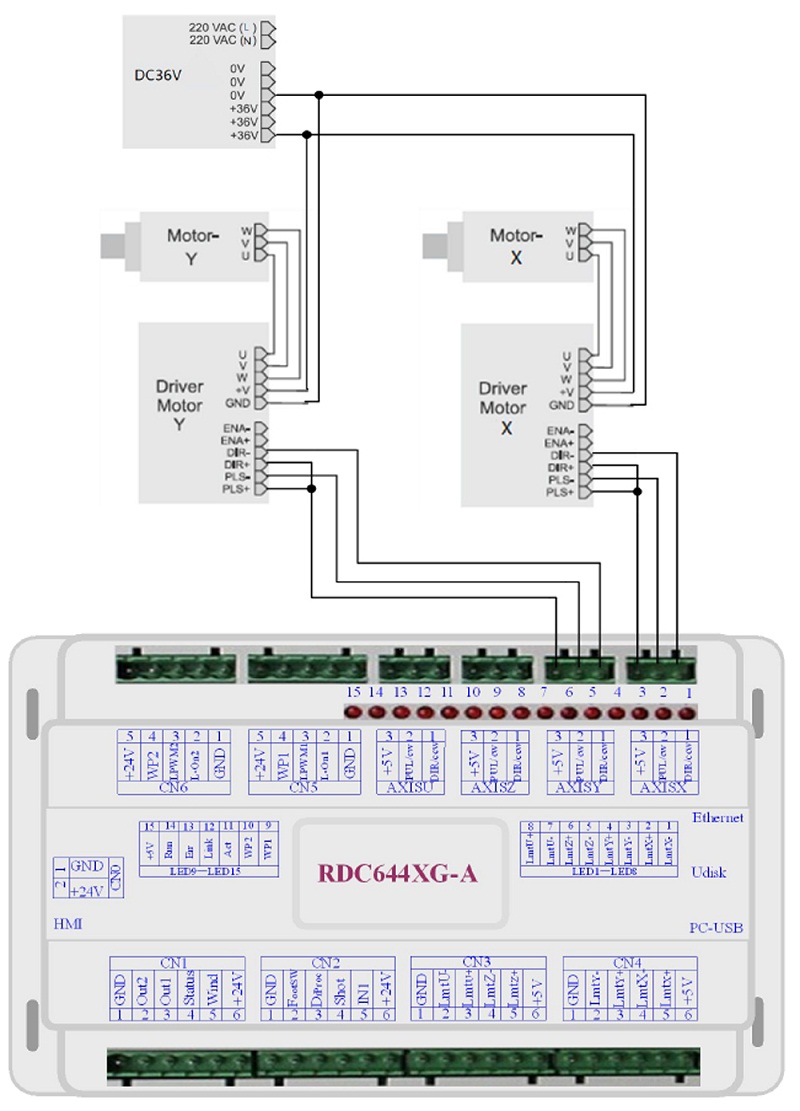

- Connection of Motor Driver:

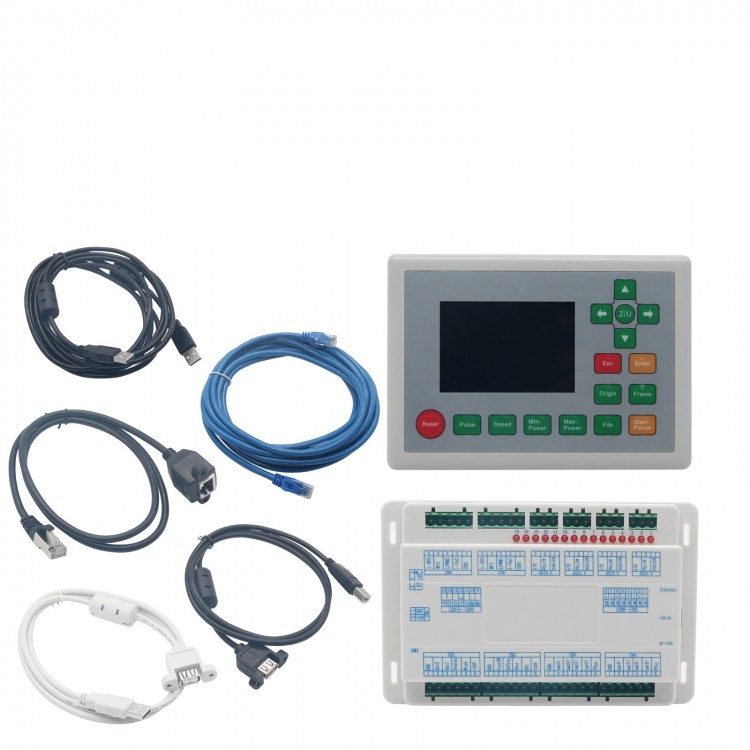

- Paqckage List:
- 1    X    Laser Cutting Engraving Machine
- 1    X   USB Connection wire
- 1    X   Date Wire
