• S-SA1 IR Array Matrix Illuminator 90 Degree 10M  Infrared Ray Illuminator

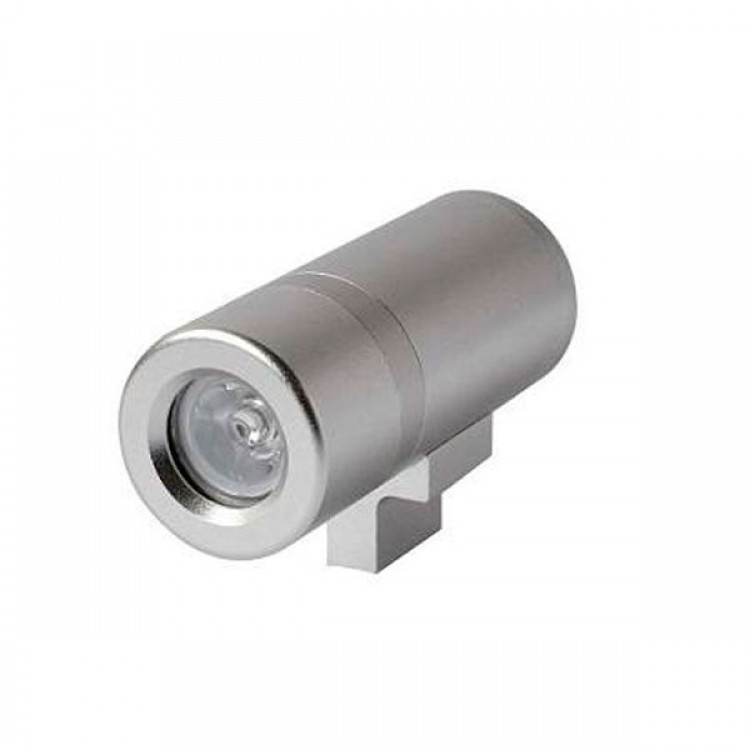

S-SA1 IR Array Matrix Illuminator 90 Degree 10M Infrared Ray Illuminator

Availability: Out Of Stock

  • Price:$34.67
  • Price in reward points: 347 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.98 $33.28 $32.24 $30.86 Contact US
Quantity:

S-SA1 IR Array Matrix Illuminator 90 Degree 10M  Infrared Ray Illuminator
Specification
- LED:IR Array LED
- Numbers of LED:1PCS 2W High Power LED
- Wavelength: 850nm
- Bean Angle : 8°15°30°45°60°90°120°(optional)
- Bean Distance : 0~70meter
- Working Voltage :DC12V
- Input Power:1000mA
- Day/night Cut : Auto
- Wire :12VDC:45cm(1.4feets)
- Bracket : Universal
- Working Temperature: -20℃ to +50℃
- Waterproof Class : IP65
- Color :Silver
- Housing : Aluminum Die Casting Housing
- Front Panel : Glass
- N.W :0.27KG
- Dimension:39*94*58mm

Model        Bean  Angle   Color temperature Distance
S-SA1-8           8°           850nm                  70m
S-SA1-15        15°          850nm                  50m
S-SA1-30        30°          850nm                  35m
S-SA1-45        45°          850nm                  28m
S-SA1-60        60°          850nm                  20m
S-SA1-90         90°         850nm                  10m
S-SA1-120      120°        850nm                   8m
Max distance is tested by 1/3” SONY CCD B/W high sensitive cameras for night-vision
