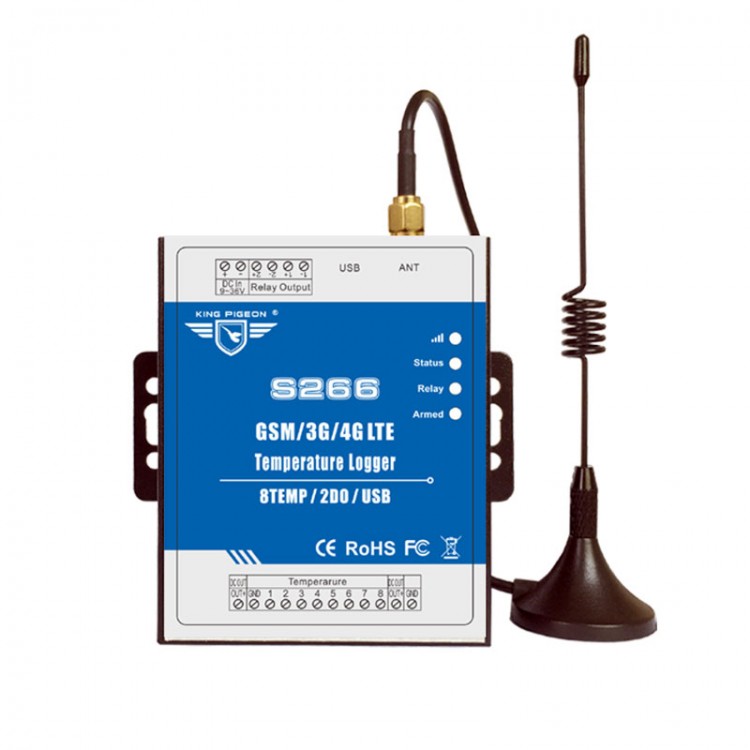

S266 GSM SMS GPRS Remote Control SMS 4G Temperature Humidity Monitoring Data Logger Alarm System

Prosduct Description:
- The GSM SMS GPRS 4G Temperature&Humidity Monitoring Alarm embedded 4G module and high performance MCU to provide an all in one instrument for data logging, Remote data acquisition, alarm and control. It special for real-time remotely monitoring onsite temperature, humidity, power status and automatically switch on/off equipments through wireless cellular network.
- It provides 4/8 temperature&humidity probe inputs or 8 high precision temperature probe inputs. When the temperature, humidity exceed high threshold or low threshold value, or external power goes off or on, will send SMS alert to upto 10 preset mobile phone immediately or upload event data to remote server by 4G network.
- It provides daily report, schedule upload, event upload by the 4G to monitoring center or by SMS to the user mobile phone directly.
- The Data Logger with large memory that can save 200000 events. It provides 2 Relay outputs for automatically switch ON/OFF devices when - Temperature & Humidity exceed high/low value and remote switch ON/OFF Device by SMS or 4G networks.
- It has been designed as a cost effective, low power, easy use, reliable data logger. It can be used in the worldwide through the wireless cellular network, operation in anywhere, no distance limitation.
- S264 4G 8-way measure temperature and humidity.It can save 200000 Events Alarm System KING PIGEON S264

Typically applications:Server room, Warehouse, Drug store, Medicine center, Seafood storage, Aquarium, Supermarket, hospital, Hotel; Weather Stations remote control and data logging, Transformer stations, BTS room, agriculture, Supervision and monitoring alarm systems, etc.

S266 4G Specificastion:
- GSM/GPRS/3G/4G:Optional
- Relay Output:2
- Sensor Type:DS18B20 Temperature Probe
- Record:  200000
- Measuring Range:Temp:–55°C to +125°C (–67°F to +257°F), accuracy is±0.5°C.
- Notice:1.Default version is GSM; 2.For 3G WCDMA and 4G LTE version, please tell our sales where you would like to use them.

Mainly Features:
- Can be operated from anywhere, no distance limitation;
- Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;
- 3G UMTS/HSDPA/4G Modules are optional.;
- 32 bit MCU, reliable performance with in-built watchdog;
- Support temperature & humidity monitoring remotely in real-time;
- Support 2 relay outputs,7A@125VAC,5A@125VAC, 20A@14VDC;
- Exceed High/Low threshold value will Alert via SMS/Call/GPRS/3G/4G networks;
- Supports 1 DNS or IP address as server, supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;
- Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
- Supports remotely restart the device, and configure it by SMS commands remotely;
- Up to 10 user's phone number to receive alarm and daily report SMS/Call;
- Provides daily report, schedule upload, event upload by the GPRS/3G/4G to monitoring center or by SMS to the user mobile phone directly;
- In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;
- Internal 16MB memory, logs more than 200000 records;
- Support Android/IOS APP, easily & friendly for use/config.
- Support configure parameters, load profiles, export historical data and upgrade the firmware via PC;
- Wall mount or 35mm standard DIN rail Design, convenient installation,
- Metallic cover, small size, exterior dimension is L70*W88*H30mm.

Advantages:
- Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;
- 3G UMTS/HSDPA/4G Modules are optional.;
- 32 bit MCU, reliable performance with in-built watchdog;
- Support temperature & humidity monitoring remotely in real-time;
- Support 4 channel temperature input interface(AM230x);
- Support  2 relay outputs,7A@125VAC   5A@125VAC  20A@14VDC;
- High/Low Alert via SMS/Call/GPRS;
- Supports 1 DNS or IP address as server;
- Supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;
- Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
- Supports remotely restart the device, and configure it by SMS commands remotely;
- Up to 10 user's phone number to receive alarm and daily report SMS/Call;
- Timer report, interval period 1~65535 seconds, configurable; automatically upload status/Value to the authorized numbers;
- In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;
- In-built internal clock, support 11 actions on schedule at pre-set time;
- Internal 16MB memory, logs more than 200000 records;
- Wall mount or 35mm standard DIN rail Design, convenient installation, Dimensions 70*88*30mm;
- Support Android/IOS APP, easily & friendly for use/config.
- Support remote upgrade the firmware via PC.
- Can be operated from anywhere, no distance limitation;
- Secure - Using caller ID and password for identification, unknown callers are ignored;

Note:The package does not include any SIM card.

Standard Packing List:
- 1 x Data Logger
- 1 x Antenna
- 1 x AC/DC adaptor (12V1.5A)
- 1 x User Manual

Optional: AM230x Temperature &Humidity Sensor, 1m, 5m, 20m;DS18B20 Temperature Probe, 1m, 5m, 10m, 20m;35mm Standard DIN rail fixed Bracket
