Sarantel Small Quadrafilar Helix GPS Antenna for your RC Robots or FPV Projects

Availability: In stock, usually dispatched in 1 business day

  • Price:$42.62
  • Price in reward points: 426 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $41.77 $40.92 $39.64 $37.93 Contact US
Quantity:

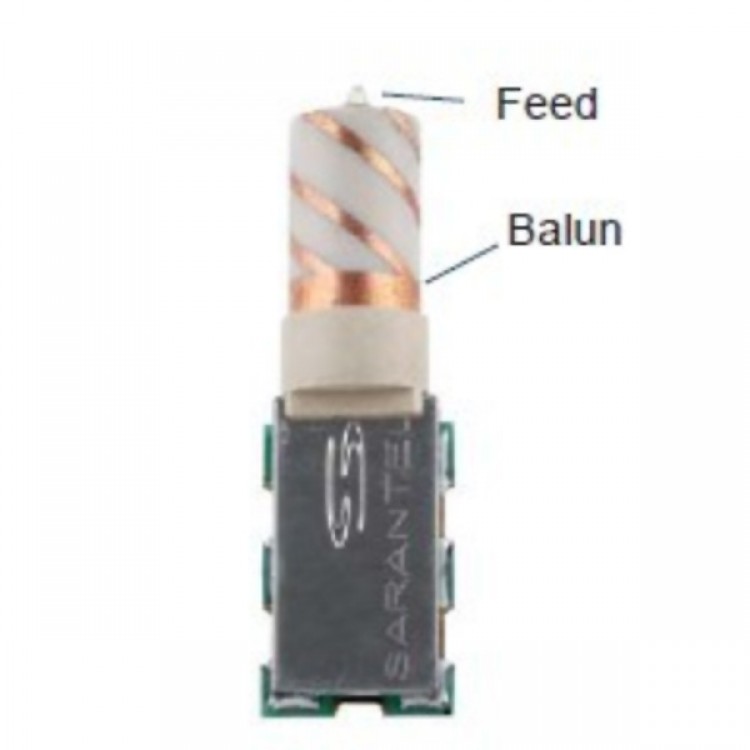

Sarantel Small Quadrafilar Helix GPS Antenna for your RC Robots or FPV Projects
Product Description:
- Built on patented PowerHelix® filtering antenna technology, the Sarantel GPS antenna provides high performance in difficult GPS applications using a quadrafilar helix design. The Sarantel antenna is ideal in applications where:
- the device is handheld, body-worn, or otherwise surrounded by high-dielectric materials that would de-tune conventional antennas;
-  the antenna is tightly integrated with other antennas, e.g., Bluetooth®/GPS
-  Receivers or GPS/GSM mobile phones;
- there are tight constraints on the size of the device or the amount of space
- Allocated to ground planes;
- the orientation of the device is random;
- The antenna will be embedded in the device

- The Sarantel antenna is balanced, which isolates it from the device and enables the antenna to reject common mode noise resident on the device ground plane. The construction and materials of the antenna constrain its near-field to a very small volume, therefore materials near the antenna have negligible de-tuning effects and the antenna maintains its pattern and efficiency in the presence of dielectric loading. As a dielectrically-loaded antenna, the Sarantel acts as its own filter,attenuating signals from common GSM and ISM frequencies by as much as 30dB without external filtering. The SL1200 antenna builds on the industry-leading performance of the Sarantel (GeoHelix-SMP) external GPS antenna, reducing its size by 30%, making it even simpler to embed in a product. Please refer to the Embedding Information section for guidelines on correct on-frequency implementation.

Specfication:
- Connecter type:welding
- frequency:1575.42MHz
- Band Width:5MHz
- (VSWR): 2.0
- (Boost Gain):24dBi
- Noise:1.5dBi Max
- Operating Volt:3V
- DC Current: 12mA max
- Impedance:50 Ohm
- Polarization:Right Hand Polarization
- Axial Raito:2.0dBi(0~90o)
- operating Temperature:-40~80℃
