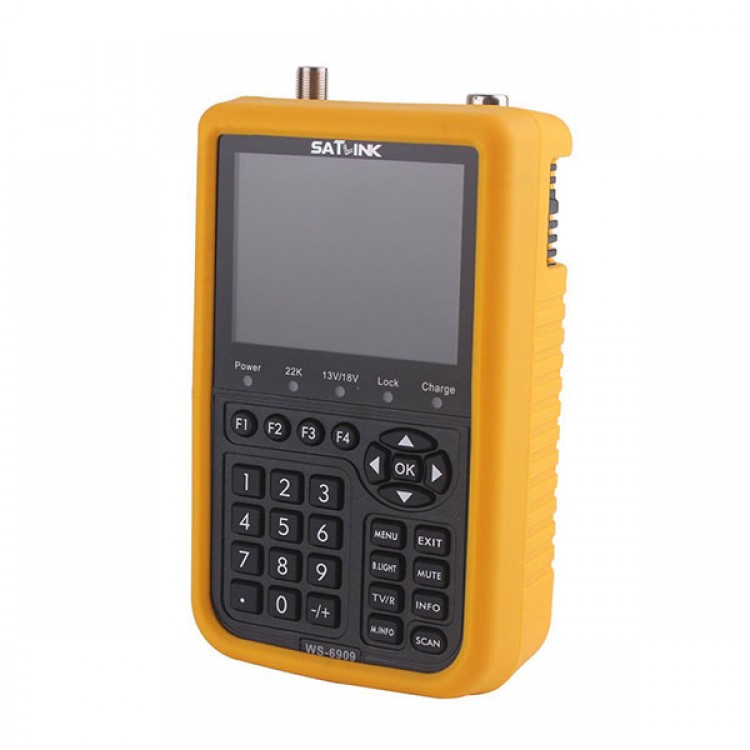

SATlink WS-6909 3.5" DVB-S & DVB-T Combo Satellite Signal Finder Terrestrial Meter
Description
- WS-6909 DVB-T DVB- S(3.5 inch LCD Screen) Satellite Meter
Note: America not support DVB-T.
Introduction:
- 3.5 Inch High Definition TFT LCD Screen
- Both AV IN And AV Out
- 8.4V/3000mAh Lion Battery Included
- Max Operating Time:4 hours
- 12V/1.5A DC Adapter
- Sound and Light Alarm for Locking Signal
- USB Port For Software Upgrades
- Speaker Integrated
DVB-S
- Input Frequency 950～2150MHz
- Input Level -65～ -25dBm
- Input Impedance 75Ω
- Auto Calculate Angle of AZ ,EL
- Support DISEQC 1.0,1.1,1.2 and 22khz Tone
- Measurement Type: signal strength,quality; BER; S/N;PWR
- Search Mode: Auto,Blind,Manual
- LNB Power Supply:18/13V(IMax 400mA)
DVB-T
- Frequency Range: 46MHz-862MHz
- Level range:40dBμV-110dBμV
- Input Impedance:75Ω
- Multichannel check
- Demodulation:QPSK,16QAM,64QAM
- Measurement Type: signal strength,quality; MER; S/N;PWR
- Search Mode: Auto,Manual
- ANT Power Supply:5V/12V/24V
For the first time in a economical digital meter, you are now able to view the actual channel on the screen of the meter. Now you can quickly and accurately align the satellite AND you can instantly check the stability of the channel right on the screen of the meter. Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user. There is never a need to send your meter in for a upgrade.
Meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
Package Include:
- 1 x WS 6909 Satellite Meter
- 1 x Power Adaptor
- 1 x AV Cable
- 1 x Car Charger Cable
- 1 x Silicone Case
