SatLink WS-6922 HD Satellite Finder Meter

Availability: Out Of Stock

  • Price:$286.39
  • Price in reward points: 2864 Reward Points: 29
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $280.66 $274.93 $266.34 $254.89 Contact US
Quantity:

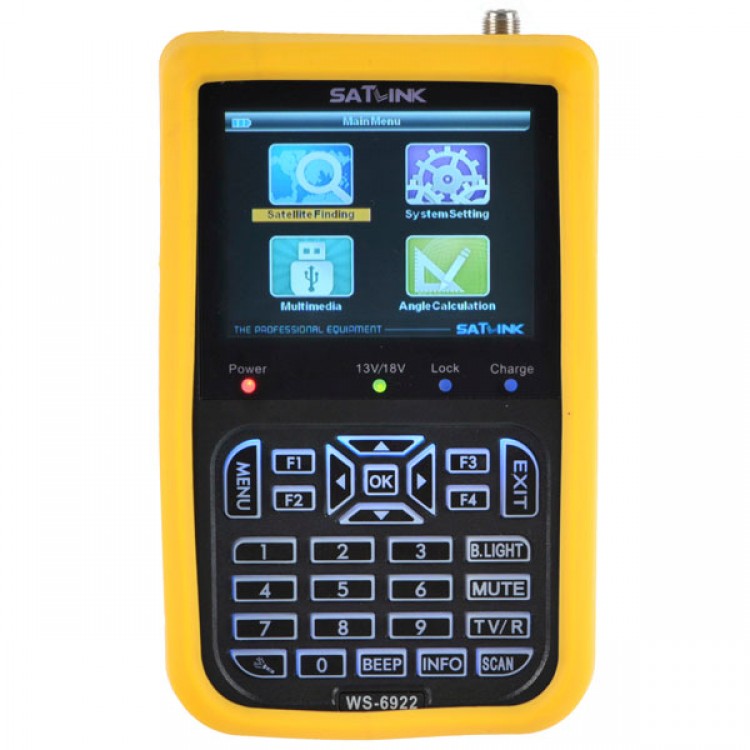

SatLink WS-6922 HD Satellite Finder Meter


Using WS6922 can receive DVB-S and DVB-S2 signal.It's very convenient for instal ler to catch quick and accurate al ignment for antenna to the best position.WS 6922uses microprocessor control ler with rel iable and stable performance.

When it is turned on channel picture, signal strength and signal quality will be showed on LCD screen. And also big menu window can be selected for data figure.WS 6922 displays EL/AZ, CBER/VBER, S/N, signal strength and lock sound alarm.

WS 6922 can detect very weak signal and provide antenna power(OFF/13V/18V). It's with auto.

WS 6922 has the AV in and AV out function.WS 6922 assist with key backl ighting, flashlight.

WS 6922 uses the 12V power adapter.It includes 8.4V3000mAH high capacity LI-ION battery which can  work for more than 2 hours when it is fully charged.

Specifications:

System   Fully DVB compliant   yes
connector   F type feminin
frequency range   950MHz-2150MHz
LNB input  signal level   -65dBm~-25dBm
LNB power supply   13/18V, max 350mA
LNB switch control   22KHz
DiSEqC   Ver 1.0/ 1.1/1.2
Front end  QPSK(S);QPSK,8PSK,
Demodulator    16APSK,32APSK(S2)
Modulation range   2Mbps~45Mbps
SCPC OR MCPC    both yes
processor   32bit processor (133MHz)
FLASH  8Mbyte (64MHz)
SDROM   16*16Mbyte(DDR1)
System resource  Data rate speed   up to 15M bits/s
Resolution   720*576,720*480
Vedio format   PAL/NTSC/SECAM
Type   Mono
sampling rates   32,44.1 48KHz
Data interface   connector   USB
LI-ION battery   3000 mA
Power supply  Supply voltage   8.4Volt
Charger   100-220V
Mesurement    9.5x15.5x4.5 (cm)
Physical characteritics  Weight(net weight)   0.5 Kg
