SATLINK WS-7990 1080 AV COFDM DVB-T 4 Route 12V DC Signal Modulator

Availability: In stock, usually dispatched in 1 business day

  • Price:$731.19
  • Price in reward points: 7312 Reward Points: 73
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $716.57 $701.94 $680.01 $650.76 Contact US
Quantity:

SATLINK WS-7990 1080 AV COFDM DVB-T 4 Route 12V DC Signal Modulator

Product Description:
- Satlink WS-7990 can modulate 4 route 1080 HD signal into standard DVB-T signal and outputs to coaxial cable or DVB-T transmitter through RF interface.
- High level of integration, high-performance, Full-featured, integrated design:
- 2 HDMI / AV  inputs  modulator that converts  source to a DVB-T over RF channel
- Standard COFDM modulation and H.264 encoding
- Support High-Bandwidth Digital Content Protection HDCP
- Bandwidth: 6/7/8MHz
- Frequency range: 50~860MHz
- Continuously adjustable RF signal output level range 69dBuV to 100dBuV
- 2.4-inch color LCD display
- Small size and light weight
- Carriers 2K and 8K
- User friendly setup and control

Product Parameter:

- DVB-T Standard
- HD Broadcast 1080i
- Frequency range:  50 to 860 Mhz
- RF Out Level: Adjustable  from 70dBuV to 100dBuV
- DVB-T modulations: QPSK, 16QAM, 64QAM
- Channel Bandwidth: 6/7/8 Mhz
- Carriers: 2K, 8K
- Guard Intervals: 1/4, 1/8, 1/16, 1/32
- Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
- Impedance: 75 Ohm  ( 50 opt. )
- MER: 35 dB
- Spectrum Shoulders: 55 dB for  perfect adjacent-channel operations
- Out Filter: -70 dB of Harmonic  and spurious suppression
- Encoding Delay 600-800 milliseconds
- Video Input Formst: CVBS, HDMI
- Encoding Format: H.264
- Video Resolution: 576i PAL/ 480i NTSC/ 1080p
- Connector: RCA/ HDMI 1.3
- Audio Input Format: Stereo L/R channel
- Connector: RCA
- Power Source: DC 12V 1,5A
- Operating Temperature: 0- +50°C
- Dimensions: 280 x 203 x 61mm
- Weight: 1.26KG

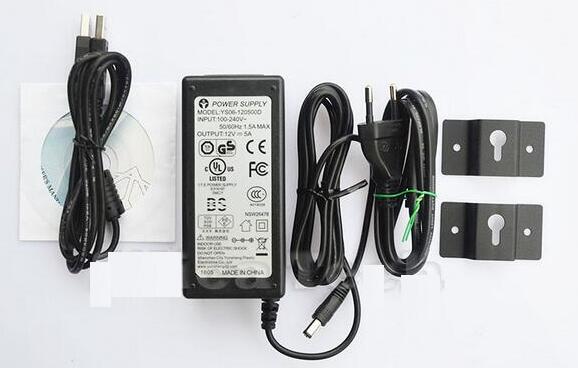

Package List:
- 1 x WS-7990 4 Route HD DVB-T Modulator
- 1 x 12V 5A Power Adapter
- 1 x USB wire
- 1 x CD English Instructions
