| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $12.01 | $11.77 | $11.40 | $10.91 | Contact US |

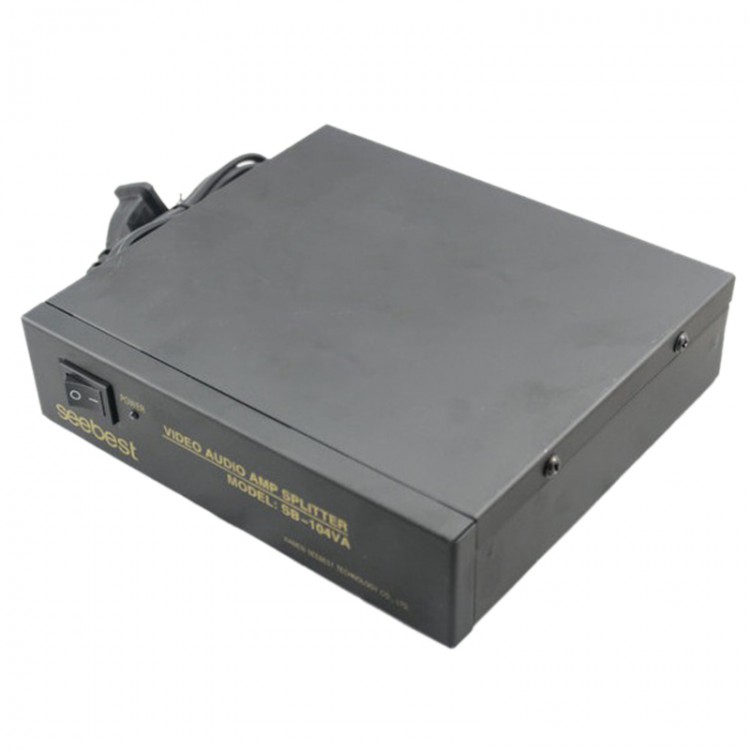

SB-104VA 4 Way 1 Input 4 Output Video Audio Amp Spliter RCA Connector AV Splitter
Features:
- Using high quality components and advanced circuit design technology
- Each Independent amplified outputs , high isolation , anti-interference ability
- Suitable for families. Hotels. Cabaret . Mall. Schools factories and other occasions
Key parameters:
| Index | SB-104VA | |
| Video | Rated input signal level and impedance | VS0.8-1.0Vp-p/75Ω |
| Rated output signal level and impedance | VS1.0-1.4Vp-p/75Ω | |
| Bandwidth | 50Hz-5.5MHz | |
| Enter1Way , the output 4 channel | ||
| Audio frequency | Rated input signal level and impedance | 2V (RMS) / 47KΩ |
| Rated output signal level and impedance | 2V (RMS) / 1KΩ | |
| Frequency Characteristics | 10Hz-20KHz, 0dB | |
| Enter1/ 2 way ( left and right channels ) , output 4 way ( left and right channels ) | ||
| Supply Voltage | ~220V±10% | |
| Power Consumption | 3W | |
| Dimensions |
166x149x43mm |
|
Package Included:
- 1 x Video Audio Amp Spliter
