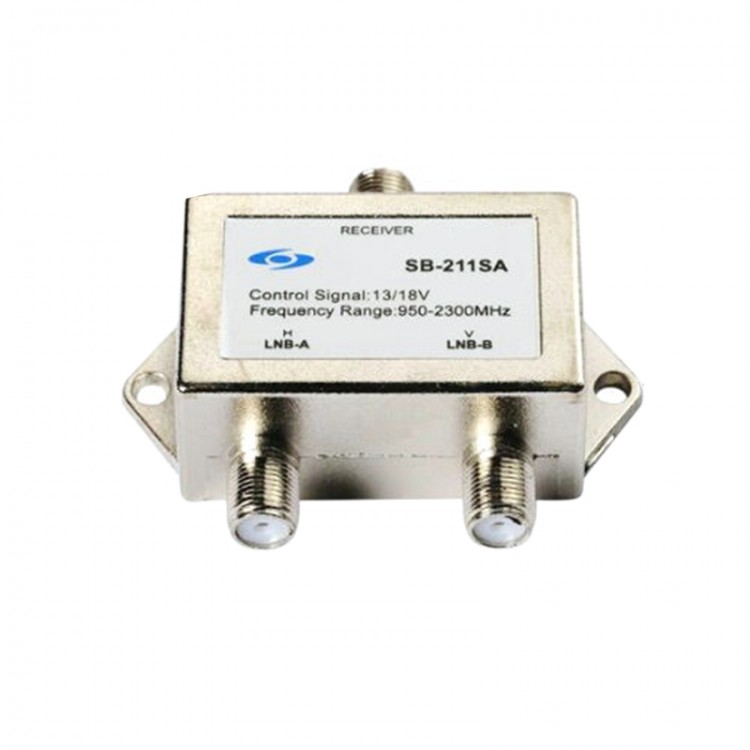

Seebest SB-211SA TV Satellite Switch with 2 Inputs and 1 Output 13V 18V Relay Selector Switch Satellite Signal Switch 2-Pack
Specifications:
- Model No.: SB-211SA
- Satellite signal switch (13V/18V voltage control)
- Signal switch for satellite, cable, TV and FM. The switch can simply be installed to switch one piece of equipment between two signal sources e.g. satellite dish, TV aerial or FM aerial.
- 2*1 satellite signal switch
- Frequency range:950-2300MHz
- Mostly used for V/H selection in dual output LNB system
- Max. 500mA DC power passing from RX to LNB
- 75ohm, British system F-type connector
- For SATV/CATV
- Dimension: 54×56×26mm
Features:
1. Using high-quality high frequency devices, low insertion loss, high isolation
2. LNB switched by 13V/18V from the coaxial cable
3. Mostly used for V/H selection in dual output LNB system
4. Max. 500mA DC power passing from RX to LNB
5. 75ohm, British system F-type connector
6. For SATV/CATV
7. Dimension: 70*56*24mm

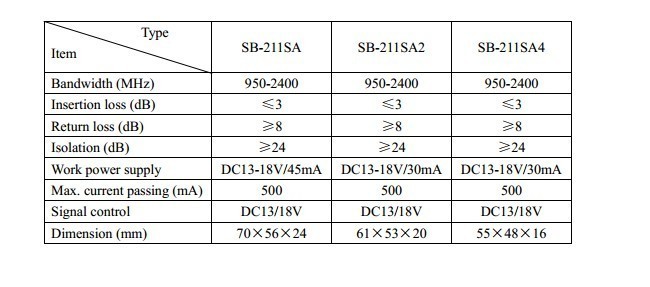

Key Parameters:
Package Included:
- 2 x Seebest SB-211SA TV Satellite Switch
