Seebest SB-2320B 950-2300MHz 20dB Satellite TV Antenna Signal Line Amplifier

Availability: In stock, usually dispatched in 1 business day

  • Price:$10.87
  • Price in reward points: 109 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.65 $10.44 $10.11 $9.67 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

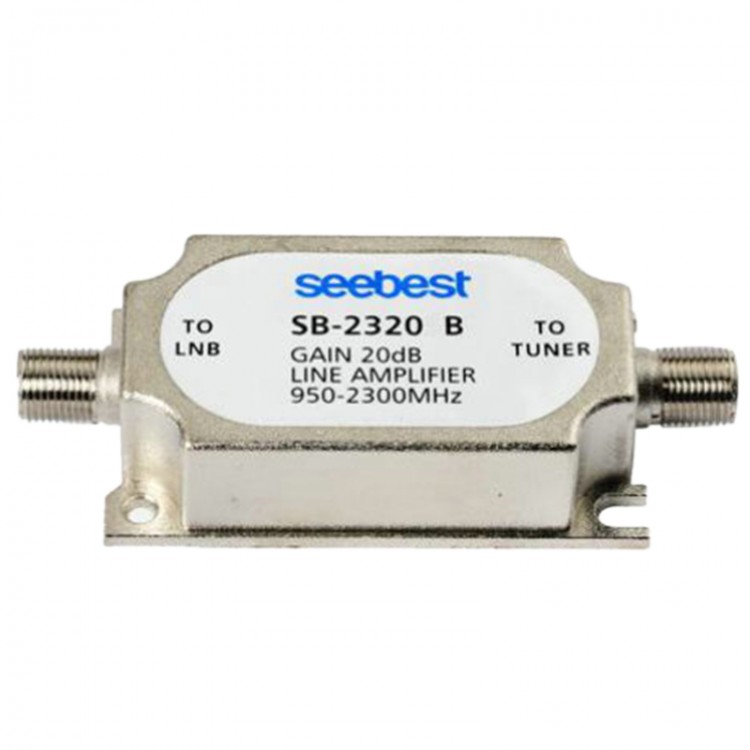

Seebest SB-2320B 950-2300MHz 20dB Satellite TV Antenna Signal Line Amplifier

Description:
Seebest SB-2320B is a satellite signal amplifier, integrated waterproof housing made of zinc alloy , shielding performance ; selection of imported high-frequency amplifier parts, low-noise circuit design ; LNB side with antenna tuner , TUNER end is connected receivers, installation is simple . The maximum amplification: 20dB.

Features:
- Zinc alloy waterproof integrated housing , good shielding performance
- The use of imported high-frequency amplifier parts, low-noise circuit design
- Working frequency :950-2300MHz, nominal gain : 20dB
- Maximum output level : 109dBμV
- Working voltage : DC13-18V, Input Output port powered
- 75Ω, British system F -type connector
- Dimensions : 83 * 18 * 34(mm)

Parameters:
- The nominal gain(dB): 17±1
- Band flatness(dB): ±0.75
- The maximum output level(dBμV): 100
- Secondary carrier intermodulation ratio(dB): ≥53
- Noise Figure(dB): ≤3.5
- Return Loss(dB): ≥10
- Supply Voltage(V): DC13-18
- Power consumption(W): 1

Package Included:
- 1 x Seebest SB-2320B 950-2300MHz 20dB Satellite TV Antenna Signal Line Amplifier
