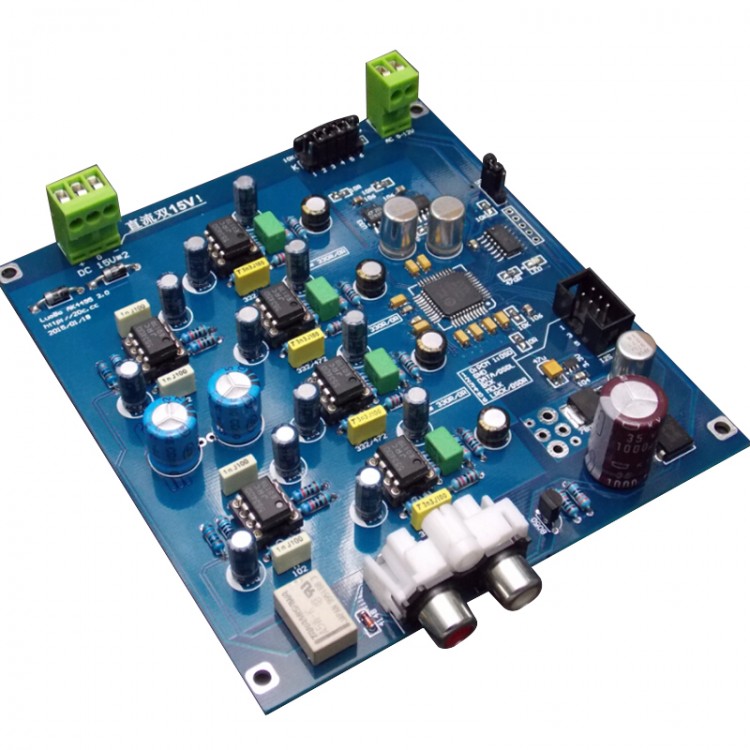

Semifinished AK4495EQ 32Bit DAC Decoder Board Dual Channel I2S DSD Input for Audio DIY
  • Semifinished AK4495EQ 32Bit DAC Decoder Board Dual Channel I2S DSD Input for Audio DIY
  • Semifinished AK4495EQ 32Bit DAC Decoder Board Dual Channel I2S DSD Input for Audio DIY

  • SKU:46973
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 4
  • Price:$44.82
  • Price in reward points: 448
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.92 $43.03 $41.68 $39.89 Contact US

Semifinished AK4495EQ 32Bit DAC Decoder Board Dual Channel I2S DSD Input for Audio DIY

Specification:

- Support I2S /DSD decoding
- AKM decoding chip, 32bit DAC for 123db dynamic range
- Onboard SCM MCU
- I2S supports up to 32bit data and 768KHz sampling rate
- DSD supports 2.8M 5.6M sampling data (DSD64, DSD128)
- Support software controls volume(VOL port connects to 10K single coupling potentiometer)
- 3* 5534 for each channel

Function:
- With software to control volume
- Can set 5 kinds of digital filter mode
- Can set DSD sampling rate

Shortting the pin 6 of K port is PCM mode, otherwise is DSD mode.
Input pin 1 low level of I2S interface, PCM mode
Input pin 1 high level of I2S interface, DSD mode.
When using pin 1 of I2S interface to switch PCM/DSD, be off the pin 6 of K port, otherwise will damage th external signal source.

Others:
- PCB: 12*11cm
- Power supply: Analog power supply DC double 15V, digital power supply AC9-12V
- Pin 5 interface under VOL port should be disconnected when no using.

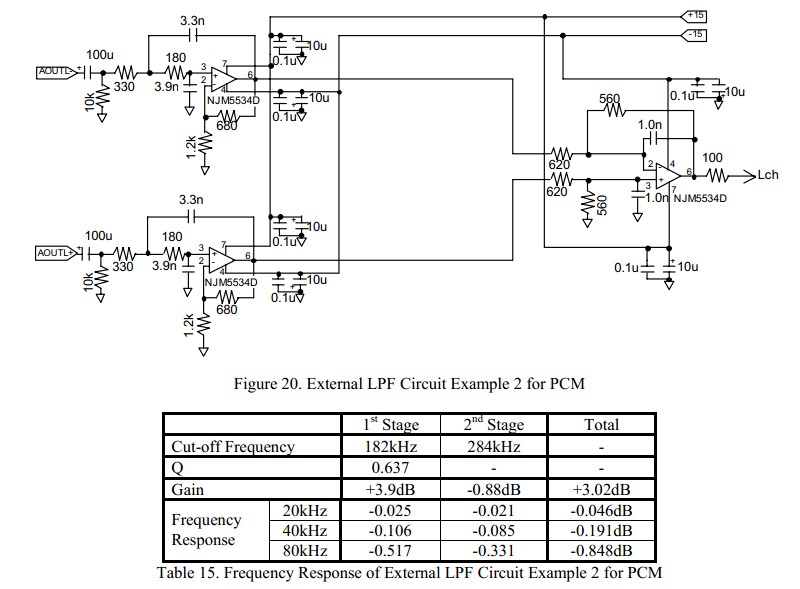

Main board analog part adopts IV LPF circuit:

Note:

Semi-finished suite, including board and components.
The paster element has been welded and tested, and the straight pin needs to be welded yourself.

Package included:
- 1 x AK4495EQ DAC Decoder Board
