Serial 2.2" TFT LCD Screen Module: ITDB02-2.2SP
  • Serial 2.2" TFT LCD Screen Module: ITDB02-2.2SP
  • Serial 2.2" TFT LCD Screen Module: ITDB02-2.2SP
  • Serial 2.2" TFT LCD Screen Module: ITDB02-2.2SP
  • Serial 2.2" TFT LCD Screen Module: ITDB02-2.2SP

  • SKU:22356
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$18.20
  • Price in reward points: 182
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.84 $17.47 $16.93 $16.20 Contact US

Serial 2.2" TFT LCD Screen Module ITDB02-2.2SP

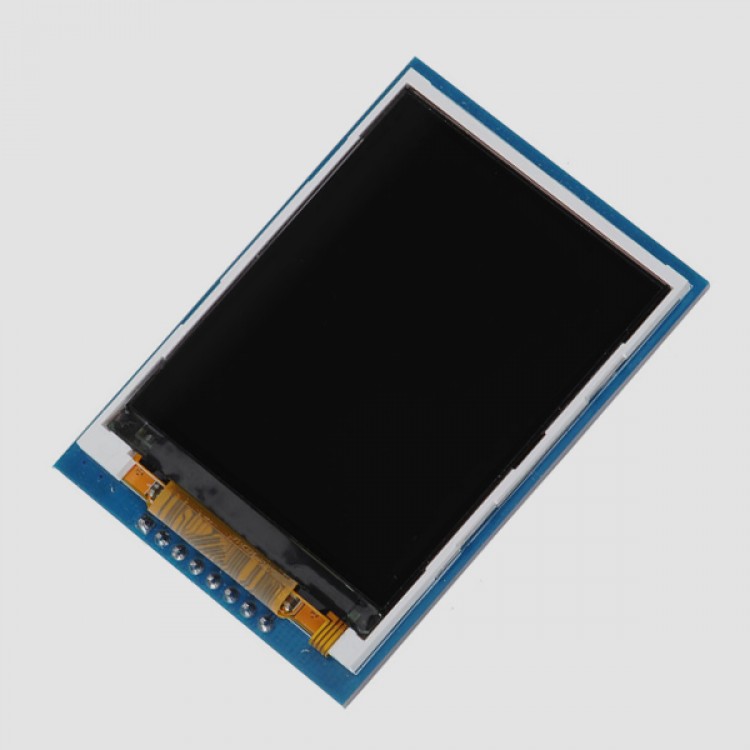

ITBD02-2.2SP is a 1.8" TFT LCD module with serial interface. Instead of using the 8/16bit parallel bus, you just need 4 pins (CS,RS,SCL,SDA) to control this LCD module. The TFT LCD is 2.2" with resolution 176x220, 262K color.

There is LDO and Level converter chip on board, so the ITDB02-2.1SP support both 5V or 3.3V operation level. For power supply, you can use the 3.3V power via "3.3V" PIN, so 5-9V power via "VIN" PIN.

*This ITDB02-2.2SP module just support the display function, without touch and SD expand.


More information:

Schematic

Datasheet of HX8340 (controller)

Datahseet of ITBD02-2.2SP

DemoCode:

Display Test DEMO (Arduino)

Character DEMO (8051 C)

Picture dispaly DEMO (8051 C)
