Sestos Dual Digital PID Temperature Controller 2 Omron Relay 100-240V D1S-VR-220 + PT100 + 40A SSR

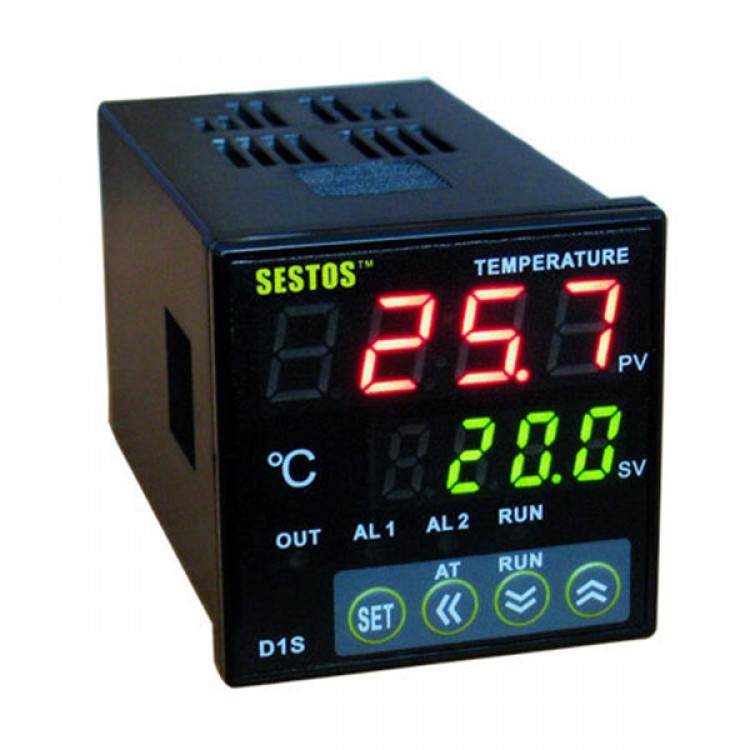

Digital Temperature Controller:
1. DIN (48X48mm) Temperature Controller
2. Support multi sensor input (K, S, Wre, T, E, J, B, N, CU50, PT100)
3. Wide control range : -50 °C~1300°C (K sensor)
4. Indication and control accuracy 0.1°C, high measurement
5. Accuracy ±0.2%FS
6. PID and ON/OFF control mode
7. Output and alarm format can be set by user
8. Built-in digital filter reduce interfere
9. Self calibration technology, keep stabilization
10. 0.39" height LED, prevent dazzle, highly visible display
11. Switching power supply and low consumption.
12. Use long life OMRON relay
13. Approve: CE
PT100 Temperature Sensing for Temperature Controller
- Temperature rang:-50°C -250°C
- Sensor Dia: §æ3 X 20
- Cable Length:
- External Shielding: Insulated Shielding
- Internal Insulation: Fiberglass
40A SSR Features:
- Reliable SMT technology
- High ultra insulation resistance over 50M¦¸/500V DC
- High dielectric over more than 2.5KV
- Low enable current less than 7.5mA/12V DC, compatible with CMOS IC or TTL
- Low EMI/EFI & surge by zero cross trigger method
- High surge current over 410A/one cycle (60Hz)
- High surge voltage duration by snubber circuit
Specifications:
- Load Voltage: 24-380VAC
- Load Current: 40 A
- Input Voltage: DC 3-32V
