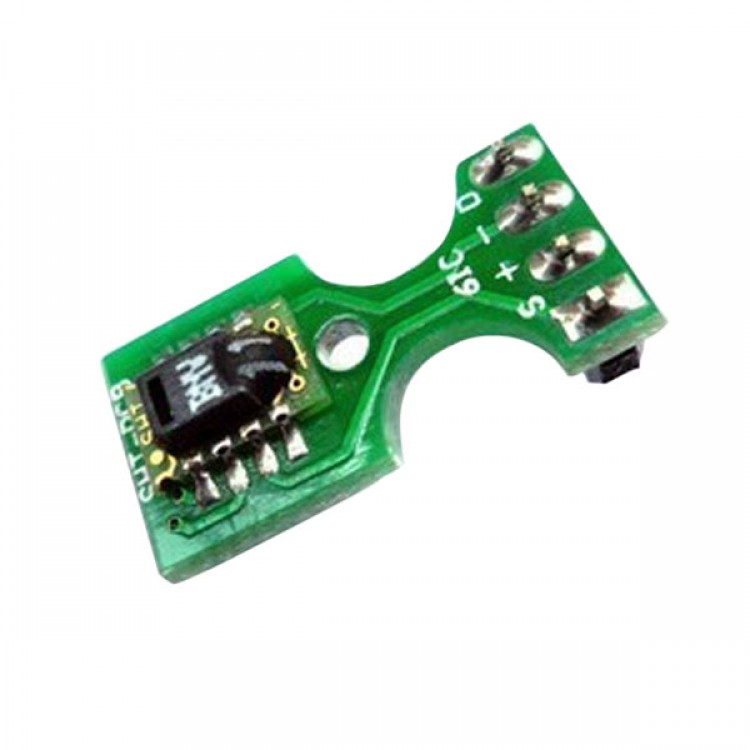

SHT10 Digital Temperature Sensor Humidity Sensor
Descriptions:
- This is a Economic relative humidity sensor for low cost applications.

- SHT10 digital humidity and temperature sensor is the low cost version of the reflow solderable humidity sensor series. The accuracies have been opened to a level that guarantees a very competitive price. The capacitive humidity sensor is available up to high volumes and as every other sensor type of the SHTxx family, it is fully calibrated and provides a digital output.

Specfications:
- Energy consumption: 80uW (at 12bit, 3V, 1 measurement / s)
- Operating range: 0– 100% RH
- Operating range:  -40 – +125°C (-40 – +257°F)
- RH response time:  8 sec (tau63%)
- Output:  digital (2-wire interface)
- Voltage:2.2--5.5VDC
- size:21mm X12mm X20mm


Maximal accuracy limits for relative humdity and temperature
