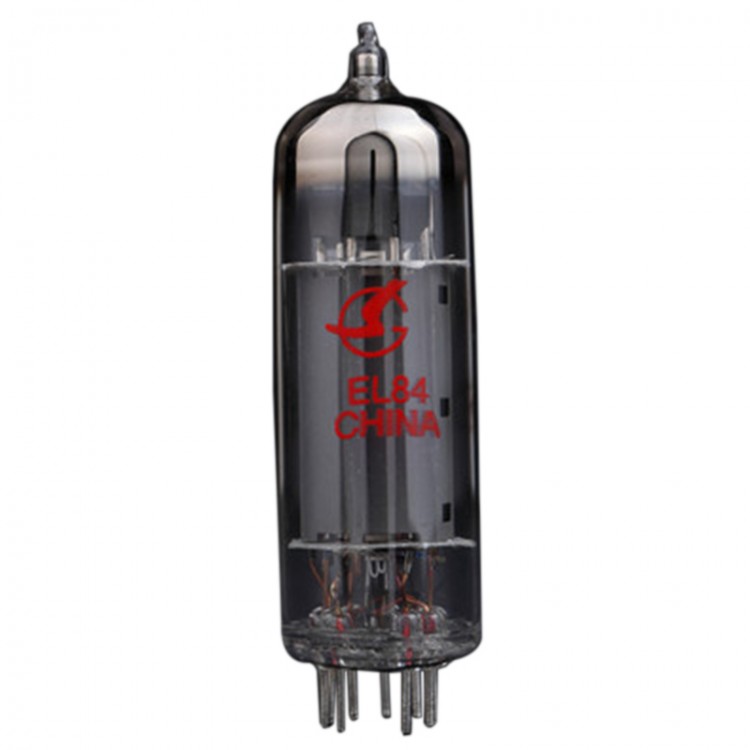

Shuguang EL84 (Replacing 6P14) Matched Quad Vacuum Tube Other Consumer Electronics 100% Original Brand New

Description:
- Anode dissipation power for pentode 6P14 is 12W. It is used as A1, AB1, B in the audio amps
- 6P14 is similar to 6BQ5, EL84. Can be used as you like

Parameters:
- Heating: Uh :6.3V; Ih: 0.76A

Limiting ratings:
- Anode voltage: 500V
- Second gate voltage: 300V
- Anode dissipation power: 12W
- Second gate voltage: -100V
- Cathode current: 65mA
- Second gate dissipation power: 2W
- Hot cathode voltage: -+100V

First gate resistor:
- Self bias: 1MOhm
- Fixed bias: 0.3MOhm

Capacitor:
- Input capacitance: 10.8PF
- Output capacitance: 6.5PF
- Cross circuit capacitor: 0.5PF
- The first gate wire capacitance:  0.25PF

Static parameter:
- Ua: 256V
- Ug2: 256V
- Rk: 120Ohm
- Ia: 48mA
- Ig2: 7mA
- Gm: >=9 mA/V
- ri: 38 kOhm
- Muon g1-g2: 39

Commond working status:
Single tube A1 amps:
- Ua: 250V
- Ug2: 250V
- -Ug1: 7.3V
- - Rk: 135Ohm
- Rl: 5.2Ohm
- Ug1 (r.M.S): 0v, 3.4v,4.3v,4.7v
- Ia(0): 48mA
- Ia(max,sig): 49.5mA  49.2mA
- Ig2(0): 5.5mA
-  Ig2(max,sig):  10.8mA  11.6mA
- Gm: 11.3 mA/V
- ri: 38 kOhm
- Ug1-Ug2: 19
- Pout: 0W, 4.5W, 5.W, 6.0W
- Dtot: 0, 6.8%,10%

Package included:
- 1 x EL84 (Replacing 6P14) Matched Quad Vacuum Tube
