Shuguang Electron Tube 12AU7 (Replacing ECC82) Audio Matched Vacuum Tube for Amplifier
Description:

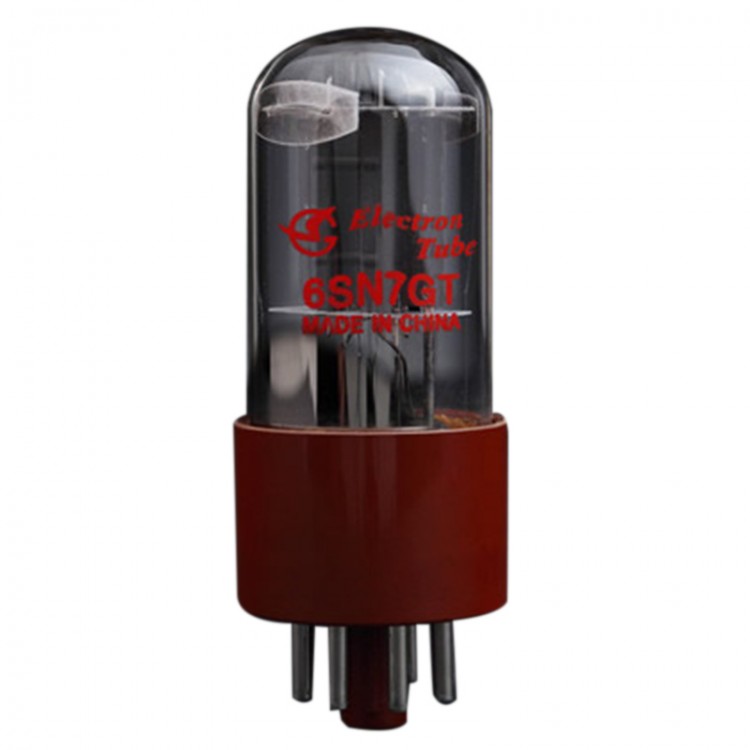

6N8P is similar to 6SN7GT. Can be used as you like
Parameters:
- Heating: Uh :6.3V ; Ih: 0.6A
A1 Limiting ratings:
- Ua: 450V
- Uh-k: -+100V
- Pa (No.1+N.o2): 5W
- Ik: 20mA
- Rg: 1MOhm
Capacitor for No.1:
- Input capacitance: 2.2PF
- Output capacitance: 0.7PF
- Cross circuit capacitor: 4PF
Capacitor for No.2:
- Input capacitance: 2.6PF
- Output capacitance: 0.7PF
- Cross circuit capacitor: 3.8PF
Static parameter:
- Ua: 90V;250V
- Ug: 0; -8V
- Ia: 10mA; 9mA
- Gm: 3 mA/V; 2.6 mA/V
- ri : 6.7 kOhm; 7.7 kOhm
- Muon :20; 20
- Ug(Ia=10 muon A): -11.8V; -10.5V
- Ia(Ia= 12.5 V): 1.3mA
Package included:
- 1 x Shuguang Electron Tube 12AU7 (Replacing ECC82)
